UHP-232 HTS Router

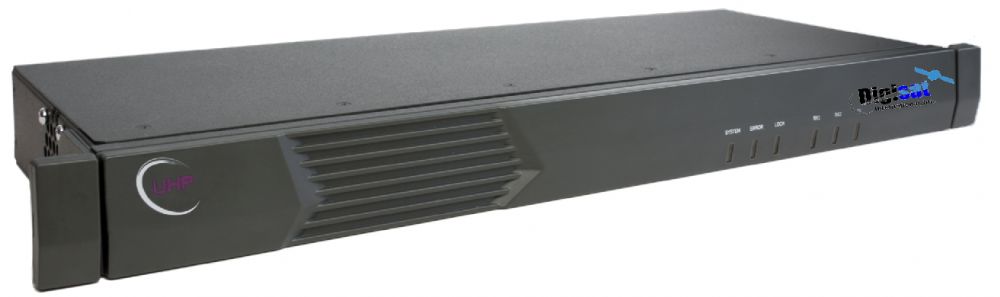

UHP-232 is a Wideband Satellite Router that represents a significant extension of the HTS series of multi-beam/multi-satellite UHP Hubs. The new HTS Hub supports wideband DVB-S2/S2X Outbounds (forward link) carrier with symbol rate up to 200 Msps. The 232 series router comprises the new HUBMUX feature which is based on the Time-Slicing DVB-S2X standard and facilitates scalability in the Hub. The HUBMUX feature enables aggregation of multiple TDM/TDMA networks and SCPC links in a single wideband carrier up to 240 MHz. HUBMUX is compatible with UHP-100 and UHP-200 series routers and permits use of compact low-cost terminals in very large VSAT networks with wideband HTS transponders.
Features
1U Rack-mountable wideband satellite router for HTS Hubs
Efficient DVB-S2/S2X ACM modulations with 5% or 20% roll-off
Support for wideband HTS transponders
Single-signal transponder operation up to 240 MHz per carrier
Wide range of symbol rates: 300 ksps – 200 Msps
HUBMUX feature with support for 4 subnetworks
Aggregation of Hubs or SCPC channels in a single wideband carrier
650 Mbps aggregate throughput per carrier
Multiple services in the same carrier for diversification
Dedicated bandwidth and full traffic isolation of embedded networks
Efficient use of HTS capacity and new dimension of VNO cooperation
Pay-as-you-grow HTS Hub infrastructure
Hot-standby M:N Smart Redundancy option
Highly Versatile
The 232 series is ideal for applications such as:
High-performance TDM/TDMA networks for HTS with slicing and load balancing
Ultra high speed SCPC channels for GSO and NGSO satellites
Multiservice VNO networks with dedicated virtual Hubs and traffic isolation

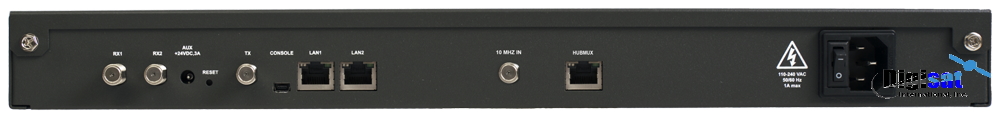

RF Interface
|
Topology |
Point-to-Point, Star, Mesh, Dual-Gateway |
|
|
Network role |
Wideband modulator of HTS Hub with HUBMUX feature |
|
|
Standard |
DVB-S2 / DVB-S2X with Adaptive Coding and Modulation |
|
|
Channels |
One wideband modulator |
Two demodulators with selectable IF inputs |
|
Modulation |
QPSK, 8PSK, 16APSK, 32APSK, 64APSK; Roll-off: 5% or 20% |
QPSK, 8PSK, 16APSK, 32APSK, 64APSK, 128APSK, 256APSK; Roll-off: 5% or 20%; |
|
|
1/4, 14/45, 1/3, 2/5, 9/20, 7/15, 1/2, 8/15, |
|
|
FEC |
11/20, 26/45, 3/5, 23/36, 2/3, 25/36, 32/45, |
All DVB-S2 & DVB-S2X MODCODs |
|
|
13/18, 3/4, 7/9, 4/5, 5/6, 77/90, 8/9, 13/45 |
|
|
Symbol Rate |
300 ksps -200 Msps; step 1 ksps Up to 4 time-slices 64 Msps each |
300 ksps -500 Msps |
|
Data Rate |
Up to 650 Mbps |
150 kbps -225 Mbps |
|
Standard |
LDPC TDMA with Adaptive Coding and Modulation |
|
|
Channels |
Four-channel MF-TDMA demodulator |
|
|
Modulation |
QPSK, 8PSK, 16APSK; Roll-off: 5%, 20% |
|
|
FEC |
1/2, 2/3, 3/4, 5/6 |
|
|
Symbol Rate |
100 ksps -11 Msps; step 1 ksps |
|
|
Data Rate |
100 kbps -35 Mbps |
|
|
TDMA Protocol |
Frame 50 -1000 ms, 14 slot sizes, manageable minimal bandwidth; fast MF-TDMA hopping |
|
|
QoS |
8-level prioritization, traffic policies, CIR, MIR, group QoS, hierarchic traffic shaper, FAP |
|
|
Performance |
Up to 190 000 packets per second |
|
|
Support |
DSCP, multiple IP/VLANs, PAT, proxy ARP, L2 Bridging, TCP Acceleration, Jumbo frames, AES-256 |
|
|
Protocols |
IPv4/IPv6, IGMP, cRTP, SNMP, RIP, SNTP, TFTP, PPP, DHCP, DHCP Relay, OpenAMIP |
|
|
Management |
HTTP interface, SNMP, Telnet, NMS with VNO support |
|
|
User LAN |
2 x Gigabit 10/100/1000 Base-T |
|
|
Maintenance console |
miniUSB, B female |
|
|
IF Rx (both inputs) |
950-2150 MHz; Ref. 10 MHz/+5 dBm [RX1]; 13.5/18 VDC 0.75A; F type |
|
|
User LAN |
1 x Gigabit 10/100/1000 Base-T |
|
|
IF Tx |
950-2150 MHz, -1…-46 dBm; Ref. 10 MHz/+5 dBm; F type |
|
|
Power |
90-264 VAC or 24 VDC; 15 W |
|
|
Operating temperature |
0…+50 ℃ |
|
|
Size / Weigh |
440х44х170 mm / 2.3 kg |
|
Allows HTS operators to combine different services and business models just in one carrier with full traffic isolation of embedded networks.
