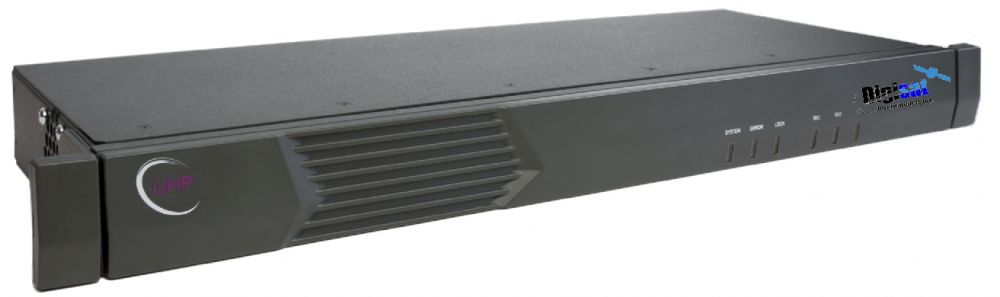

UHP Networks UHP-231 Universal M2M Satellite Router

UHP-231 M2M VSAT Router

UHP-231 features cutting edge multi­channel DVB and MF-TDMA demodulators, a universal SCPC/TDMA modulator, a powerful IP router and a multipurpose embedded computer. The primary application is for 2G/3G/LTE Cellular Backhaul.  This satellite router is also a good fit for M2M networks, where the embedded computer can perform additional tasks to collect and process data using a customized software.

Features

 World’s fastest VSAT router with aggregate throughput up to 450 Mbps and powerful UHP-RTOS

 Two independent DVB demodulators with software-switchable IF inputs and rate up to 500 Msps

 Efficient DVB-S2/S2X ACM modulations with 5% or 20% roll-off and support for HTS

 One MF-TDMA demodulator with innovative protocol and proven efficiency of 96% vs. SCPC

 Adaptive coding and modulation (ACM) in forward/return channels, including SCPC/TDMA modes

 Various modes of operation and topologies: SCPC, TDM/ TDMA Star&Mesh, Hubless TDMA

 HTS-ready VSAT with support of multiple beams, bands, satellites reception with traffic balancing

 Superior IP router productivity up to 190 000 PPS and rich set of supported protocols, QoS

 Layer 3 routing architecture and Layer 2 bridging mode with IPv6 transport

 Ultra-low latency with round-trip delay about 570 ms for TDMA mode of operation

 Embedded computer for advanced data processing with backhaul optimization, traffic acceleration

 Optional 2G/3G/LTE backhaul optimization, GTP decoding, TCP acceleration, payload compression

 1:1 automatic redundancy without external controllers or M:N Smart Redundancy

Highly Versatile

The 231 series is ideal for applications such as:

 Enterprise networking

 Videoconferencing

 Distribution and contribution of video

 Voice and data trunking

 Cellular backhaul

 Broadband Internet access.

Router Intereconnect Cabling

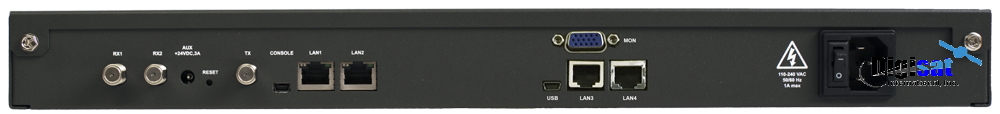

RF Interface

Mobile Backhaul Optimization

 Leading the market through best-in-class IP base Abis, 3G Iub/Iuh and LTE S1 interface optimization techniques, including network aware Intelligent Optimization features. Don't settle for simple transport optimization solutions but rather intelligent, service aware solutions focused on improving optimization, increasing network reliability, and enhancing the user experience - supporting 2G, 3G, and LTE. The solution is based on the latest optimization algorithms able to perform GTP decoding and use deep packet inspection to apply mobile-aware intelligent optimization and acceleration techniques. It also uses proprietary lossless compression algorithms, specifically designed for signaling, voice, and packet service.
