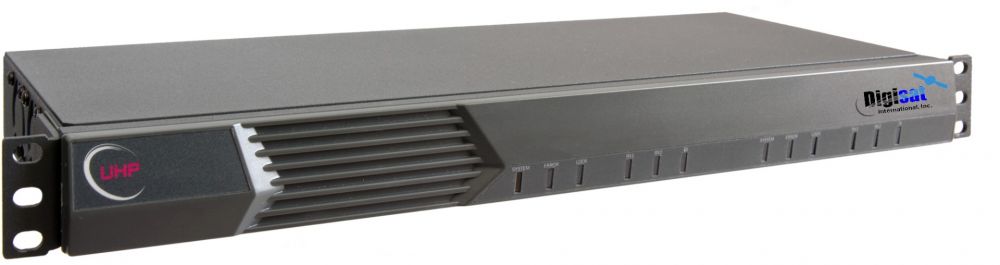

UHP Networks UHP-140 High-Throughput (HTS) Satellite Modem

UHP-140 Dual HTS VSAT Modem

UHP-140 is a high-performance dual router designed specifically for large-scale deployment in broadband VSAT networks operating over HTS and traditional satellites. This product combines the Universal Hardware Platform (UHP) architecture, which was developed in the previous generation of the award-winning UHP product line.

The UHP-140 can process 150 000 IP packets per second, 225 Mbps of traffic and two carriers up to 500 Msps.  Its super-compact size offers low power consumption (less than 8W) with the best utilization of the precious satellite resource, as
evidenced by up to 256APSK modulation, 5% spectral roll-off, adaptive modulation and coding, adaptive power control and 96% efficient TDMA protocol.

The 140 series is equipped with two high-speed DVB-S2/S2X demodulators together with their independent IF inputs and front ends. The router can simultaneously receive two carriers transmitted via two different satellite beams. The built-in advanced beam switching algorithm facilitates seamless roaming of mobile satellite terminals.

Features

 High-performance TDM/TDMA Satellite Router with aggregate throughput up to 450 Mbps

 Four independent DVB demodulators with separate IF inputs and rate up to 500 Msps

 Efficient DVB-S2/S2X ACM modulations with 5% or 20% roll-off and support for HTS

 Two MF-TDMA modulators with innovative protocol and proven efficiency of 96% vs. SCPC

 Adaptive coding and modulation and transmission power control in forward and return channels

 Dual satellite or dual band operations with dynamic traffic balancing and automatic beam switching

 Superior IP router productivity up to 150,000 PPS, rich set of supported protocols

 Layer 3 routing architecture and Layer 2 bridging mode with IPv6 transport

 Support of VLAN, multilevel QoS, RT traffic, TCP acceleration, AES encryption

 Built-in adaptive hierarchic traffic shaper specially designed for VSAT applications

 Two Ethernet user ports with built-in switch simplifies connection of CPE and maintenance

 Ultra-low latency VSAT system with round-trip delay about 570 ms for TDMA mode of operations

 Support of 1:1 automatic redundancy schemes without external controllers

Highly Versatile

The 140 is ideal for applications such as:

 High-performance TDM/TDMA networks for HTS with slicing and load balancing

 Ultra high speed SCPC channels for GSO and NGSO satellites

 Multiservice VNO networks with dedicated virtual Hubs and traffic isolation

RF Interface
