UHP Networks UHP-130 Universal DVB-S2/S2X ACM Satellite Router

UHP-130 Universal VSAT Router

UHP-130 is a high-performance DVB-S2/S2X ACM router designed specifically for large-scale deployment in broadband VSAT networks operating over HTS and traditional satellites. This product combines the Universal Hardware Platform (UHP) architecture, which was developed in the previous generation of the award-winning UHP product line.

The integrated router can process 150 000 IP packets per second, 225 Mbps of traffic and two carriers up to 500 Msps, it can do this with best utilization of the precious satellite resource, as evidenced by up to 256APSK modulation, 5% spectral roll-off, adaptive modulation and coding, adaptive power control and 96% efficient TDMA protocol. This satellite router is a good fit for rack-mountable TDM/TDMA terminals or can be used as a multi-channel SCPC receiver / concentrator.

Two demodulators with separate IF interfaces allow simultaneous reception of two TDM and/or SCPC carriers from few distinct satellite beams or from several antennas. In conjunction with a built-in advanced beam switching algorithm it facilitates seamless roaming of mobile satellite terminals between beams of HTS satellites.

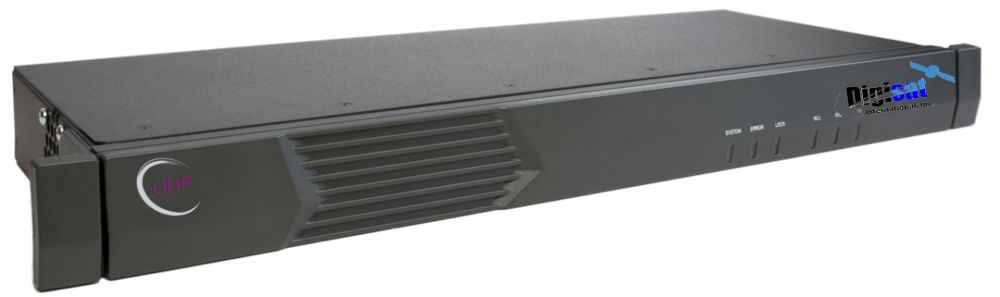

UHP-130 satellite router is supplied in a compact 1U chassis for installation in a standard 19 inch rack. The built-in power supply ensures reliable operations of the router itself and of the outdoor RF equipment from multiple vendors. Low power consumption, optional DC power input, and uniquely fast start on power-up facilitate use of alternative power sources, such as solar batteries.

Features

 High-performance TDM/TDMA Satellite Router with aggregate throughput up to 225 Mbps

 Two independent DVB demodulators with separate IF inputs and rate up to 500 Msps

 Efficient DVB-S2/S2X ACM modulations with 5% or 20% roll-off and support for HTS

 MF-TDMA modulator with innovative protocol and proven efficiency of 96% compared to SCPC

 Adaptive coding and modulation and transmission power control in forward and return channels

 Dual satellite or dual band operations with dynamic traffic balancing and automatic beam switching

 Superior IP router productivity up to 150,000 PPS, rich set of supported protocols

 Layer 3 routing architecture and Layer 2 bridging mode with IPv6 transport

 Support of VLAN, multilevel QoS, RT traffic, TCP acceleration, AES encryption

 Built-in adaptive hierarchic traffic shaper specially designed for VSAT applications

 Two Ethernet user ports with built-in switch simplifies connection of CPE and maintenance

 Ultra-low latency VSAT system with round-trip delay about 570 ms for TDMA mode of operations

 Support of 1:1 automatic redundancy schemes without external controllers

Highly Versatile

The 130 series is ideal for applications such as:

 Enterprise networking

 Videoconferencing

 Distribution and contribution of video

 Voice and data trunking

 Cellular backhaul

 Broadband Internet access.
