Teledyne Paradise Datacom Q-Lite COTM Satellite Modem Card
Weatherproof chassis rated to IP65, 2.4kbps to 2.048Mbps, Closed Network Tx/Rx modem with 4 Gigabit Ethernet ports for M&C and traffic

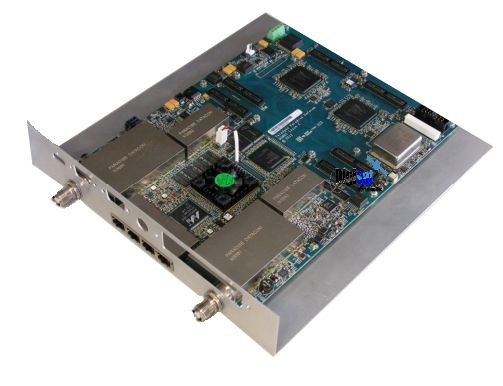

Teledyne Paradise Datacom Q-Lite COTM Modem Card
The Paradise Datacom Q-Lite COTM satellite modem card is a compact, single-board solution suitable for integration into custom enclosures for portable communications and comms-on-the-move. The card has been designed for simple mechanical integration into OEM products, being small in physical size and with very low power consumption.
It is compatible with Q-Flex and Q-MultiFlex modems. Monitoring and control of the modem is via Ethernet, with an option to fit a keypad and LCD display for local control. The Q-Lite can also be provided in a half-width chassis.
Advanced Bandwidth-Efficient Features
The Q-Lite is small in size but big on features! Paired Carrier+ is our enhanced carrier overlap technology that allows transmit and receive carriers to occupy the same space segment. DVB-S2X, is between 20% and 60% more bandwidth efficient than its predecessor, DVBS2. Bandwidth-saving IP features include ACM, acceleration and header and payload compression.
Q-Lite Card Features
- Small form factor (255mm x 184mm)
- Extended L-band operation to 2450MHz
- Data rates to 345Mbps
- Paired Carrier+ enhanced carrier overlay
- Satellite beacon receiver mode as standard
- Optimized spectral roll-offs, including 5%
- XStream IP advanced IP optimization suite including TCP & HTTP acceleration, header & payload compression, traffic shaping, encryption & ACM
- DVB-S2/S2X, FastLink LDPC & TPC
- 24 Volt input power supply
- 25 to 33 Watt power consumption
- Optional keypad/LCD display & fans
- Optional L-band services (10MHz output, LNB power, external BUC PSU)
- LinkGuard signal-under-carrier interference detection
- Built-in spectrum & constellation monitors
- DVB Carrier ID. Fully compliant with DVBCID standard
Applications
- Comms-on-the-move including vehicles, aircraft and UAVs
- Portable communication systems
- Compact, low-power VSAT terminals
- Man-packs
- Broadcast news gathering
- Disaster recovery
