Teledyne Paradise Datacom 6RU R-Series Ku-Band SSPA
Exceptional Ku-Band RF performance, Ku-Band frequencies from 13.75 to 14.50 GHz

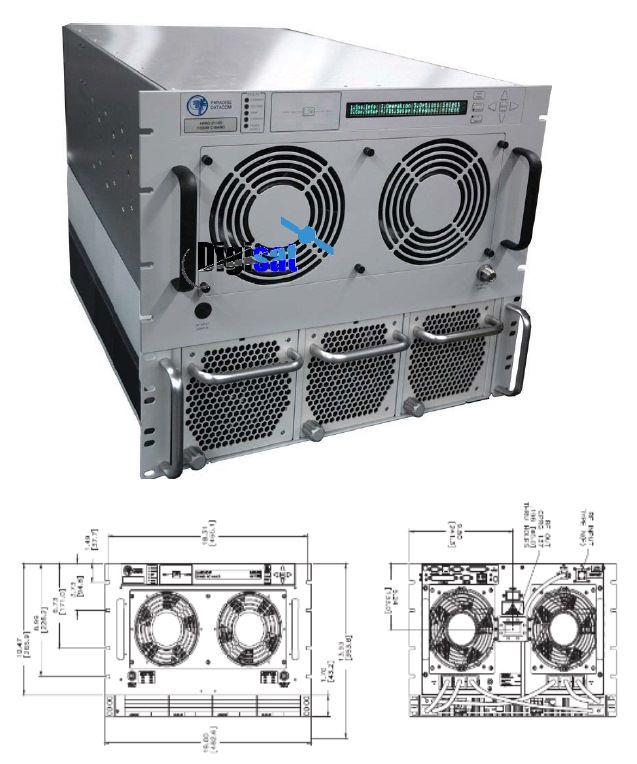

6RU R-Series Ku-Band Satcom Solid State Power Amplifier
Teledyne Paradise Datacom R-Series 6RU Ku-Band Rack Mounted SSPA systems represent the industry’s highest power density and most reliable high power amplifier systems. These high power amplifiers are accompanied with a separate power supply chassis.
Hot Swappable
The power supply is configured as a n+1 redundant, hot swappable, power supply comprised of three modules. Only two modules are required to operate the HPA, therefore one module is redundant. In the event of a power supply module failure, the amplifier system will not fail. The module can then be changed without ever taking the HPA out of service. The microwave amplifier architecture is also designed for maximum soft fail redundancy.
Fully Modular Design
The High Power Rack Mount SSPA employs a modular design, which allows quick and easy replacement in the event of a catastrophic failure of one of the SSPA components. These modular assemblies include: front and rear fan trays; and a rear panel controller card.
Outline Dimensions
Power Specifications
|
BAND |
PARAMETER |
NOTES |
LIMITS |
UNITS |
||
|
C-BAND |
Frequency Range |
(see options for extended band) |
5.850 to 6.425 |
GHz |
||
|
Output Power @: Saturation/P1dB (Typical/Guaranteed minimum) |
HPAC6800ARXXXXX HPAC611KARXXXXX |
Psat / P1dB 59.0 / 58.0 (800 / 630) 60.4 / 60.0 (1100 / 1000) |
dBm (W) dBm (W) |
|||
|
Power Requirements Line Voltage Line Frequency Power Factor Line Power |
HPAC6800ARXXXXX HPAC611KARXXXXX |
180 to 265 47 to 63 .90 4150 6000 |
VAC Hz W W |
|||
|
X-BAND |
Frequency Range |
7.9 to 8.4 |
GHz |
|
||
|
Output Power @: Saturation/P1dB (Typical/Guaranteed minimum) |
HPAX6700ARXXXXX HPAX610KARXXXXX |
Psat / P1dB 58.5 / 58.1 (700 / 650) 60.0 / 59.5 (1000 / 900) |
dBm (W) dBm (W) |
|||
|
Power Requirements Line Voltage Line Frequency Power Factor Line Power |
HPAX6700ARXXXXX HPAX610KARXXXXX |
180 to 265 47 to 63 .90 5500 6000 |
VAC Hz W W |
|||
|
KU-BAND |
Frequency Range |
(see options for extended band) |
14.0 to 14.5 |
GHz |
||
|
Output Power @: Saturation/P1dB (Typical/Guaranteed minimum) |
HPAK6400ARXXXXX HPAK6500ARXXXXX |
Psat / P1dB 56.0 / 55.0 (400 / 300) 57.0 / 56.0 (500 / 400) |
dBm (W) dBm (W) |
|||
|
Power Requirements Line Voltage Line Frequency Power Factor Line Power |
Power Factor Corrected HPAK6400ARXXXXX HPAK6500ARXXXXX |
180 to 265 47 to 63 .90 4600 5100 |
VAC Hz W W |
|||
|
C-BAND |
Frequency Range |
(see options for extended band) |
5.850 to 6.425 |
GHz |
||
|
Output Power @: Saturation/P1dB (Typical/Guaranteed minimum) |
HPAC6800ARXXXXX HPAC611KARXXXXX |
Psat / P1dB 59.0 / 58.0 (800 / 630) 60.4 / 60.0 (1100 / 1000) |
dBm (W) dBm (W) |
|||
|
Power Requirements Line Voltage Line Frequency Power Factor Line Power |
HPAC6800ARXXXXX HPAC611KARXXXXX |
180 to 265 47 to 63 .90 4150 6000 |
VAC Hz W W |
|||
|
X-BAND |
Frequency Range |
7.9 to 8.4 |
GHz |
|
||
|
Output Power @: Saturation/P1dB (Typical/Guaranteed minimum) |
HPAX6700ARXXXXX HPAX610KARXXXXX |
Psat / P1dB 58.5 / 58.1 (700 / 650) 60.0 / 59.5 (1000 / 900) |
dBm (W) dBm (W) |
|||
|
Power Requirements Line Voltage Line Frequency Power Factor Line Power |
HPAX6700ARXXXXX HPAX610KARXXXXX |
180 to 265 47 to 63 .90 5500 6000 |
VAC Hz W W |
|||
|
KU-BAND |
Frequency Range |
(see options for extended band) |
14.0 to 14.5 |
GHz |
||
|
Output Power @: Saturation/P1dB (Typical/Guaranteed minimum) |
HPAK6400ARXXXXX HPAK6500ARXXXXX |
Psat / P1dB 56.0 / 55.0 (400 / 300) 57.0 / 56.0 (500 / 400) |
dBm (W) dBm (W) |
|||
|
Power Requirements Line Voltage Line Frequency Power Factor Line Power |
Power Factor Corrected HPAK6400ARXXXXX HPAK6500ARXXXXX |
180 to 265 47 to 63 .90 4600 5100 |
VAC Hz W W |
|||
Teleports, Gateway Earth Stations, Broadcast Uplink Stations, Satellite News Gathering
