Skyware Global Type 125 Ku-Band 1.2M Tx/Rx Class I Antenna

CPI SAT Prodelin 1120 1.2m Ku-Band Tx/Rx VSAT Antenna

CPI SAT 3122 1.2M Tx/Rx Ka-Band Antenna

Be the first to review this product

SKU

SG-125-I

Skyware Global Type 125 Ku-Band 1.2M Tx/Rx Class I Antenna is available to buy in increments of 1

Eutelsat type approval "M", precision reflector

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Details

Type 125 Ku-Band Transmit Receive Antenna

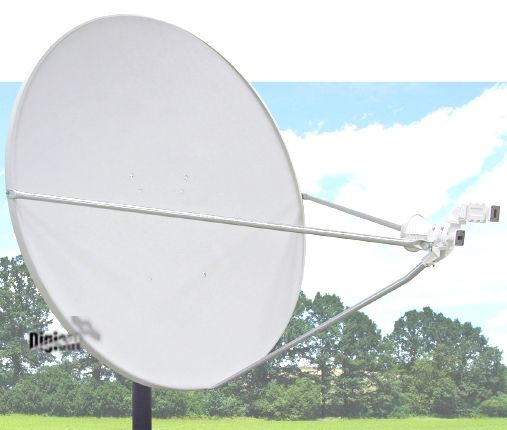

The Skyware Global Type 125 1.2M Class I Ku-Band Offset Antenna is a rugged commercial grade product suitable for the most demanding applications that require high spectral purity. The reflector is precision thermoset-molded for outstanding strength and surface RMS accuracy. Molded into the rear of the reflector is a network of support ribs which not only strengthens the antenna, but also helps to sustain its critical parabolic shape. This ensures outstanding RF performance for transmit and receive applications such as iDirect internet service and remote satellite broadband applications.

Rugged Reflector Mount

The Type 125 Az/EI mount is constructed from heavy-gauge steel to provide a rigid support to the reflector. The Az/EI mount secures the antenna to either a 60 mm 12.38"] or 73-76 mm 12.88"-3.00") 0.D. mast and prevents slippage in high winds.

Corrosion Proof Antenna Backstructure

A specially formulated powder paint process offers excellent protection from weather-related corrosion.

Key Features

• All materials comply with EU directive No. 2002/95/EC (RoHS)
• One-piece thermoset-molded offset reflector
• Single bolt fine elevation adjustment
• Galvanized 19 mm 1.75"] O.D. feed support legs
• Factory pre-assembled Az/EI mount
• Plated hardware for maximum corrosion resistance
• Available with a wide variety of Ku-band feeds

Technical Specifications

Type Approval
Antenna Model	62-125401
Eutelsat Standard	M
Approval Code	EA-V055

RF Performance
Effective Aperture	1.2M (48 in)
Operating Frequency Transmit Receive	13.75 - 14.50 GHz 10.70 - 12.75 GHz
Polarization	Linear, Orthogonal (co-pol optional)
Gain (±.3 dBi) Transmit Receive	43.3 dBi @ 14.3 GHz 41.8 dBi @ 12.0 GHz
3 dB Beamwidth Transmit Receive	1.2˚ @ 14.3 GHz 1.5˚ @ 12.0 GHz
Sidelobe Envelope (Tx, Co-Pol dBi) Mainbeam < θ < 20˚ 20˚ < θ < 26.3˚ 26.3˚ < θ < 48˚ 48˚ < θ < 180˚	29 - 25 Log θ -3.5 32 - 25 Log θ -10
Antenna Cross-Polarization	>30 dB in 1 dB Contour
Antenna Noise Temperature 10˚ El 20˚ El 30˚ El	45˚ K 31˚ K 24˚ K
VSWR Transmit Receive	1.3:1 1.5:1
Isolation (Port to Port) Transmit Receive	90 dB >40 dB
Feed Interface Transmit Receive	WR75 Flat Flange WR75 Flat Flange
Mechanical Performance
Reflector Material	Glass Fiber Reinforced Polyester
Antenna Optics	One-Piece Offset Feed Prime Focus
Mount Type	Elevation over Azimuth
Elevation Adjustment Range	5˚ - 90˚ Continuous Fine Adjustment
Azimuth Adjustment Range	360˚ Continuous, ±5° Fine Adjustment
Mast Pipe Interface	73 - 76 mm (2.88 in - 3.00 in) Diameter
Wind Loading Operational Survival	72 km/h (45 mph) 200 km/h (125 mph)
Temperature	-50˚C to 80˚C
Humidity	0 to 100% (Condensing)
Atmosphere	Standard Hardware Meets 500 Hour Salt Spray Test Requirements (ASTM B-117)
Solar Radiation	360 BTU/h/ft²
Shock and Vibration	As Encountered During Shipping and Handling
