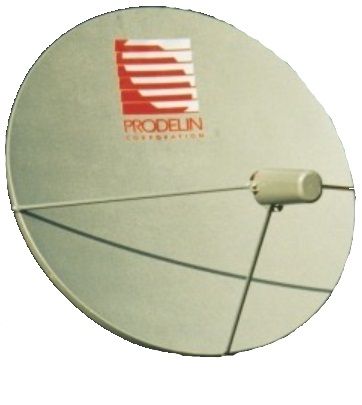

CPI SAT Prodelin 1120 1.2m Ku-Band Tx/Rx VSAT Antenna
1.2m Transmit/Receive, Ku-band frequencies
1120 1.2 Meter Transmit and Receive
CPI SAT (formerly GD Satcom Technologies & Prodelin) 1120 1.2m Ku-Band Tx/Rx VSAT Antenna
Mechanical
Reflector Material: Glass Fiber Reinforced Polyester SMC
Antenna Optics: Prime Focus Offset Feed
Mount Type: Elevation over Azimuth
Mast Pipe Size: 2” SCH 40 Pipe (2.38” OD) 6.03 cm
Elevation Adjustment Range: 5° to 90°, Continuous Fine Adjustment
Azimuth Adjustment Range: 360° Continuous, Coarse
Shipping Specifications 60 lbs. (22.2 kg.)
|
Electrical |
Series 1120 Ku-Band |
|
|
Antenna Size |
1.2 M (48 in.) |
|
|
Operating Frequency (GHz) |
Receive Transmit |
10.95 - 12.75 GHz 13.75 - 14.50 GHz |
|
Midband Gain ( +/- .5dB) |
Receive Transmit |
41.7 dBi 43.2 dBi |
|
Antenna Noise Temperature |
20° Elevation 30° Elevation |
46 K 43 K |
|
Sidelobe Envelope, |
29 - 25 Logq dBi |
|
|
100l/D ≤ q ≤ 20° |
||
|
20° < q ≤ 26.3° |
-3.5 dBi |
|
|
26.3° < q ≤ 48° |
32 - 25 Logq dBi |
|
|
48° < q |
-10 dBi (averaged) |
|
|
Max. Tx Weight |
Tier 1 = 6 lbs. Tier 2 = 12 lbs. |
|
|
Insertion Loss |
0.2 dB max. |
|
|
Cross-Pol Isolation (Linear) |
>30 dB (on axis) |
|
|
VSWR |
1.3:1 Max. |
|
Perfect for iDirect VSAT Network access and all satellite internet applications
