Skyware Global Type 100 Ku-Band Receive Only VSAT Antenna
1.0 Meter VSAT, Excellent for Ku-Band receive only applications where a small footprint is required

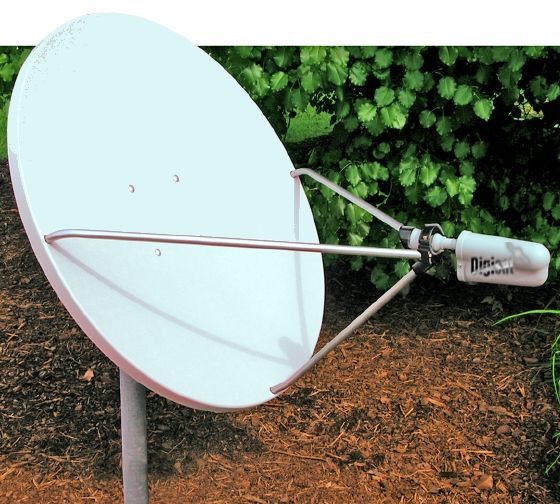

Type 100 Receive Only Antenna System
The 1.0 meter Skyware Global Type 100 Offset Antenna is a rugged commercial grade product suitable for the most demanding applications. The reflector is thermoset-molded for strength and surface accuracy. Molded into the rear of the reflector is a network of support ribs which not only strengthens the antenna, but also helps to sustain its critical parabolic shape.
Rugged Reflector Mount
The Skyware Type 100 Az/EI mount is constructed from heavy-gauge steel to provide a rigid support to the reflector. The Az/EI mount secures the antenna to either a 60 mm 12.38"] or 73-76 mm 12.88"-3.00") 0.D. mast and prevents slippage in high winds.
Corrosion Proof Antenna Backstructure
A specially formulated powder paint process offers excellent protection from weather-related corrosion.
Key Features
• All materials comply with EU directive No. 2002/95/EC (RoHS)
• One-piece thermoset-molded offset reflector
• Single bolt fine elevation adjustment
• Galvanized 19 mm !.75"] O.D. feed support legs
• Factory pre-assembled Az/EI mount
• Plated hardware for maximum corrosion resistance
• Type 100 is available with a wide variety of Ku-band feeds
RF Performance
Effective Aperture 1.0m (40in)
Openrting Frequency 10..95 -12.75 GHz
Polarization Linear (Circular Optional)
Gain@ 11..95 GHz 40.S dBi
3 dB Beamwidth
Antenna Noise Temperature@ 30' El 25' K
YSWR* 1.3::1
Cross-Polarization Discrimination (Linear) 30 dB on Axis
Feed Interface WR75 Flat Flange
Satellite broadcast audio reception, television receive only ( TVRO )
