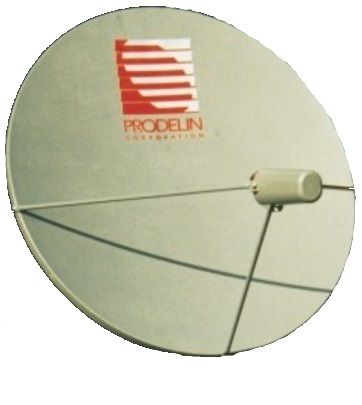

CPI SAT 1130 1.2m C & Ku-Band Receive Only VSAT Antenna
C & Ku-Band, ideal for RX only systems
1130 1.2 Meter RX Only
The CPI SAT (formerly GD Satcom Technologies & Prodelin) Series 1130 1.2M small aperture system is a rugged, reliable antenna system, which will operate in the Ku-band or C-band receive frequency bands with high efficiency and at the same time successfully withstand the effects of the environment.
|
Electrical |
Series 1761 C-Band Ku-Band |
Series 1111 C-Band Ku-Band |
Series 1130 C-Band Ku-Band |
|
Antenna Size |
.76 M (30 in.) |
1.0 M (40 in.) |
1.2 M (48 in.) |
|
Operating Frequency (GHz) |
3.625-4.2 10.95-12.75 |
3.625 - 4.2 10.95 - 12.75 |
3.625 - 4.2 10.95 - 12.75 |
|
Midband Gain ( +/- .5dB) |
28 dBi 37.9 dBi |
30.5 dBi 40.5 dBi |
32.0 dBi 42.0 dBi |
|
3 dB Beamwidth |
7.0° 2.3° |
5.3° 1.7° |
4.4° 1.4° |
|
Antenna Noise Temperature 20° Elevation 30° Elevation |
57 K 49 K 56 K 48 K |
55 K 47 K 54 K 46 K |
54 K 46 K 51 K 43 K |
|
First Sidelobe (typical) |
-23 dB -23 dB |
-23 dB -23 dB |
-23 dB -23 dB |
|
Cross-Pol Isolation (Linear) |
>30 dB (on axis) |
>30 dB (on axis) |
>30 dB (on axis)) |
|
VSWR |
1.3:1 Max. |
1.3:1 Max. |
1.3:1 Max. |
Satellite Network Operations Centers, Ku and C-Band Receive Only Requirements
