Sat-Lite Technologies RC4100 Integrated Flyaway Controller
Built-in GPS option, Push Button – Auto Locate / Auto Stow / Track / Jog / Program – Via Ethernet, available with a High Performance Beacon Receiver for Inclined Orbit Satellites
RC4100 Integrated Flyaway Controller

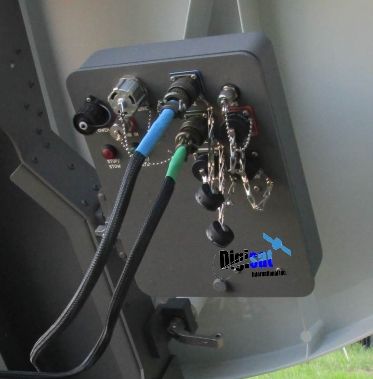

The Sat‐Lite RC4100 Integrated Flyaway Antenna Controller is a fully weatherized unit that is pre‐ integrated and can be quickly mounted on the Antenna. The unit comes with a GPS and Compass to provide accurate position and antenna heading information.
The control unit deploys the antenna to an accurate elevation and polarization angle and sweeps in azimuth to locate a signpost satellite (with known DVB signal). The onboard DVB receiver locks on the satellite and positively identifies it. Accurate look angles can then be used to peak on the final target / desired satellite longitude.
Key Features
Outdoor Mounted Antenna Control System
Simple GUI Ethernet Interface
Automatic Pointing Solution
User Programmable DVB‐S/S2 Receiver for Positive Satellite ID
Fully Enclosed and Weatherized
GPS / Single Axis Compass for Auto Acquisition
One Button Auto Locate Features
For use on all motorized flyaway antennas
