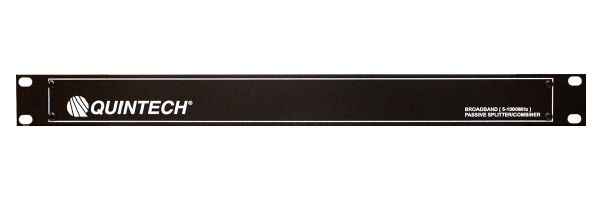

Quintech LSC8 1000P 8-Way Passive Splitter/Combiner (5-1000 MHz)

The LSC081000F1A000 is an 8-way splitter/combiner that meets strict level, match, and loss specifications achieved through the use of Quintech's proprietary microstrip and SMT technology. It operates over the 5-1000 MHz frequency range and enables the splitting or combining of RF signals with repeatable performance over the entire frequency range and across all I/O ports.

Passive Splitting

The LSC 1000P Series are commercial quality passive broadband RF power splitters / combiners that meet strict level, match, and loss specifications achieved through the use of Quintech’s proprietary microstrip and SMT technology. They operate over the 5-1000 MHz frequency range and enable the splitting or combining of RF signals with repeatable performance over the entire frequency range and across all I/O ports.

Features

• Convenient, centralized rack mount designs improve cable management.
• Microstrip design provides better performance and reliability.
• Larger configurations eliminate cascaded combiners for better performance.
• Active (zero loss) combiners allow for ease in RF budget design.
• Custom configurations for optimization of rack space and increased flexibility.
• Greatly improves cable management and aesthetics by allowing for easy access to cable routing and easing identification of cabling.
• Reduces cable connector failures by eliminating the need for frequent manual connects/disconnects.
