Quintech Electronics LS64 1000A 64 Way Active Broadband Splitter (5-1000 MHz)
64-Way, Operates in the 5 to 1000 MHz frequency Range

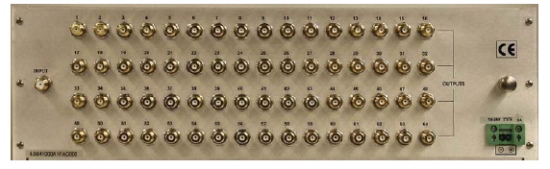

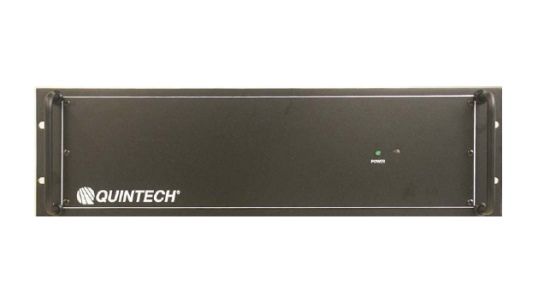

LS64 1000A 64 Way Active Broadband Splitter (5-1000 MHz)
The LS641000A1FAC000 is a commercial quality 64-way active splitter that meets strict level and match specifications achieved through the use of Quintech's proprietary microstrip and SMT technology. It operates over the 5-1000 MHz frequency range and permits signal splitting with zero loss, eliminating the need for external distribution amplifiers.
Benefits
Convenient, centralized rack mount designs improve cable management.
Microstrip design provides better performance and reliability.
Larger configurations eliminate cascaded combiners for better performance.
Active (zero loss) combiners allow for ease in RF budget design.
Custom configurations for optimization of rack space and increased flexibility.
Greatly improves cable management and aesthetics by allowing for easy access to cable routing and easing identification of cabling.
Reduces cable connector failures by eliminating the need for frequent manual connects/disconnects.
|
Frequency: |
5-1000 MHz |
|
Impedance: |
75 _ |
|
P1dB: |
+3 dBm |
|
Insertion Loss: |
0 + 2 dB @ 500 MHz |
|
Frequency Response: |
+ 2.0 dB |
|
Isolation: |
-18 dB |
|
Input Return Loss: |
14 dB |
|
Output Return Loss: |
15 dB |
|
Noise Figure: |
13 dB |
|
RF Connectors: |
Type F, 75 _ |
|
Power Requirements: |
18-24 V via 2-pin quick connect barrier strip |
|
Power Consumption: |
25 W |
|
Mechanical: |
3 RU (5.25" H x 19" W x 20" D) |
L-Band signal distribution, Cable Headends, Satellite Broadcast Facilities, VSAT Hubs
