Quintech Electronics LC64 1000A 64 Way Active Broadband Combiner (5-1000 MHz)
64 Inputs, Operates over the 5-1000 MHz frequency range
LC64 1000A 64 Way Active Broadband Combiner (5-1000 MHz)

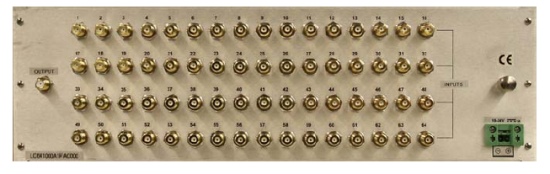

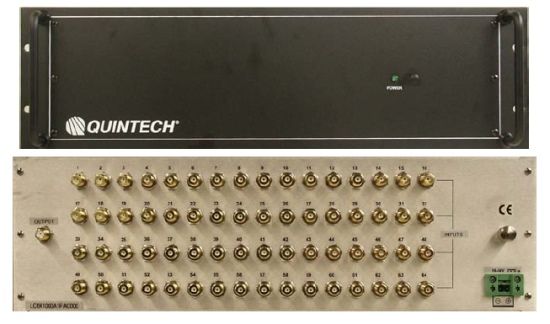

The Quintech LC641000A1FAC000 is a commercial quality 64-way active combiner that meets strict level and match specifications achieved throuogh the use of Quintech's proprietary microstrip and SMT technology. It operates over the 5-1000 MHz frequency range and enables the combining of RF signals with repeatable performance over the entire frequency range
and across all I/O ports.
Features
Convenient, centralized rack mount designs improve cable management.
Microstrip design provides better performance and reliability.
Larger configurations eliminate cascaded combiners for better performance.
Active (zero loss) combiners allow for ease in RF budget design.
Custom configurations for optimization of rack space and increased flexibility.
Greatly improves cable management and aesthetics by allowing for easy access to cable routing and easing identification of cabling.
Reduces cable connector failures by eliminating the need for frequent manual connects/disconnects.
|
Frequency: |
5-1000 MHz |
|
Impedance: |
75 Ω |
|
P1dB: |
-2 dBm (each input) |
|
Insertion Loss: |
0 + 2 dB @ 500 MHz |
|
Frequency Response: |
+ 2.5 dB |
|
Isolation: |
-20 dB |
|
Input Return Loss: |
17 dB |
|
Output Return Loss: |
11 dB |
|
Noise Figure |
19 dB |
|
RF Connectors: |
Type F, 75 Ω |
|
Power Requirements: |
18-24 V via 2-pin quick connect barrier strip |
|
Power Consumption: |
24 W |
|
Mechanical: |
3 RU (5.25" H x 19" W x 20" D) |
L-Band signal distribution, Cable Headends, Satellite Broadcast Facilities, VSAT Hubs
