Paradise Datacom X-Band Milsatcom High Density Compact Outdoor SSPA
X-Band power ratings from 25 Watts to 250W
X-Band Milsatcom High Density Compact Outdoor SSPA
The Paradise Datacom X-Band Milsatcom Compact Outdoor Solid State Power Amplifier (SSPA) is built for extreme environmental conditions and high reliability operation. Along with the robust construction exists the highest power density in the industry.
Highly Compact
This allows solid state technology to be used in applications that have long been reserved for TWTAs. At less than 40 lbs. (18 kg), and only slightly larger than a shoe box, this family of SSPAs is available in output power levels in the following range:
S-Band: 50W - 300W
C-Band: 30W - 300W
X-Band: 25W - 250W
Ku-Band: 10W - 125W
BUC Integration
Teledyne Paradise Datacom offers C-, X-, and Ku-Band amplifiers with an integrated L-Band Block Up Converter. The L-Band units utilize Paradise Datacom’s proprietary zBUCTM technology. The addition of a zBUC converter to a Compact Outdoor SSPA typically increases the gain by 2-4 dB. The advantages of zBUC technology include:
zBUC converters can detect and switch to an extenally supplied reference.
Optional internal high stability (10MHz) reference.
zBUC converters can lock to an externally supplied reference of 5, 10, 20, 25, or 50 MHz without modification.
zBUC converters can accept a wide range of external reference power (-10 to +5 dBm)
zBUC converters can accept FSK monitor and control signal via the IFL for complete amplifer remote control.
|
PARAMETER |
NOTES |
LIMITS |
UNITS |
|||||
|
Frequency Range |
A Series Sub-band B Series Sub-band |
2.020 to 2.120 2.200 to 2.300 |
GHz GHz |
|||||
|
Output Power @: Saturation/P1dB |
A Series |
Psat / P1dB |
|
|||||
|
(Typical/Guaranteed minimum) |
HPAS2050ACXXXXX (2.020 - 2.120 GHz) |
47.5/47.0 (56/50) |
dBm (W) |
|||||
|
HPAS2100ACXXXXX (2.020 - 2.120 GHz) |
50.5/50.0 (112/100) |
dBm (W) |
|
|||||
|
HPAS2200ACXXXXX (2.020 - 2.090 GHz) |
53.5/53.0 (223/200) |
dBm (W) |
|
|||||
|
HPAS2200ACXXXXX (2.095 - 2.120 GHz) |
53.0/52.5 (200/178) |
dBm (W) |
|
|||||
|
HPAS2300ACXXXXX (2.020 - 2.090 GHz) |
55.0/54.5 (316/280) |
dBm (W) |
|
|||||
|
HPAS2300ACXXXXX (2.095 - 2.120 GHz) |
54.4/54.0 (280/250) |
dBm (W) |
|
|||||
|
B Series |
|
|||||||
|
HPAS2050BCXXXXX (2.200 - 2.300 GHz) |
47.5/47.0 (56/50) |
dBm (W) |
|
|||||
|
HPAS2100BCXXXXX (2.200 - 2.300 GHz) |
50.5/50.0 (112/100) |
dBm (W) |
|
|||||
|
HPAS2200BCXXXXX (2.200 - 2.300 GHz) |
53.5/53.0 (223/200) |
dBm (W) |
|
|||||
|
HPAS2300BCXXXXX (2.200 - 2.300 GHz) |
55.0/54.5 (316/280) |
dBm (W) |
|
|||||
|
Power Requirements |
|
|||||||
|
Line Voltage |
power factor corrected |
90 to 265 |
VAC |
|||||
|
Line Frequency |
47 to 63 |
Hz |
|
|||||
|
Line Power |
HPAS2050ACXXXXX |
425 |
W |
|||||
|
HPAS2100ACXXXXX |
775 |
W |
|
|||||
|
HPAS2200ACXXXXX |
1350 (180 - 265 VAC only) |
W |
|
|||||
|
HPAS2300ACXXXXX |
1600 (180 - 265 VAC only) |
W |
|
|||||
|
Receive Band Reject Filter |
|
|||||||
|
External filter only |
Insertion Loss |
- 0.5 |
dB |
|||||
|
Rx Reject @ 2.200 - 2.300 GHz |
-60 |
dBc |
|
|||||
|
Rx Reject @ 2.025 - 2.120 GHz |
-60 |
dBc |
|
|||||
|
Receive Band Noise Power Density For sub-band A SSPAs only |
Without optional filter With optional filter |
-95 -155 |
dBw/4 KHz dBw/4 KHz |
|||||

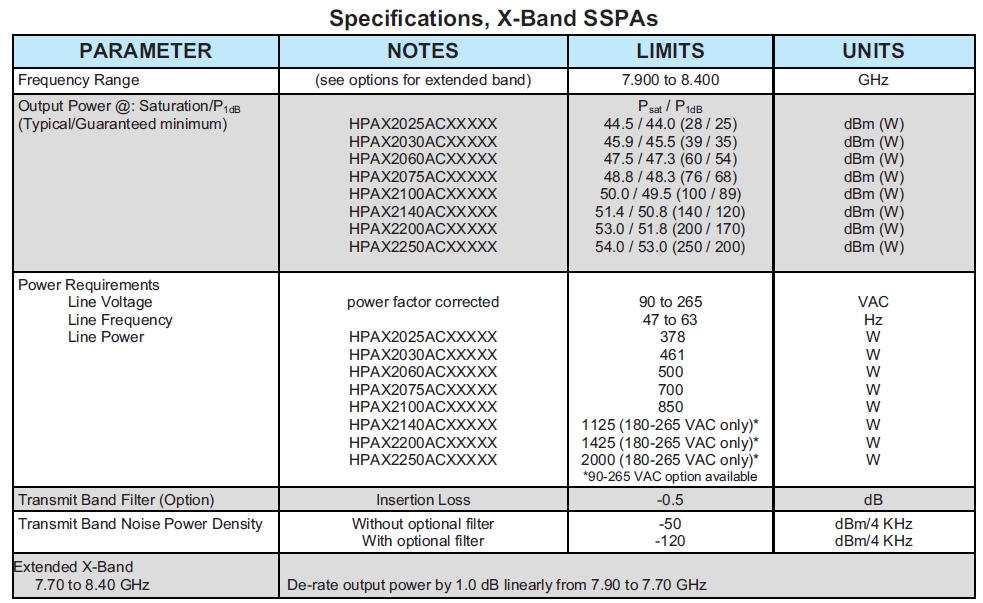

X-Band SSPA Specifications
|
PARAMETER |
NOTES |
LIMITS |
UNITS |
|
Gain Gain Flatness Gain Slope Gain Variation vs. Temperature Gain Adjustment |
range full band (C-,X-,Ku-bands) full band (Extended C-Band) full band (S-band) per 40 MHz (C-,X-,Ku-bands) Per 10 MHz (S-band) -40 °C to +55 °C 0.1 dB resolution |
55-75 ± 1.0 ± 1.5 ± 0.5 ± 0.3 ± 0.2 ± 1.5 20 |
dB dB dB dB dB/40 MHz dB/10 MHz dB dB |
|
Intermodulation Distortion |
Two-Tone 3 dB back off from P1dB |
-25 |
dBc |
|
AM/PM Conversion |
@ rated P1dB @ P1dB - 1 dB @ P1dB - 2 dB |
3.5 1.5 1.0 |
o/dB o/dB o/dB |
|
Spurious Harmonics (SSPA only) |
(@ rated P1dB) (@ rated P1dB-3dB) (C-,X-,Ku-bands) (@ rated P1dB-3dB) (S-band) |
-60 -50 -30 |
dBc dBc dBc |
|
Input/Output VSWR |
All units except Extended C-Band Extended C-Band units |
1.30:1 1.50:1 |
|
|
Noise Figure |
at maximum gain (C-,X-,Ku-bands) at maximum gain (S-band) |
10 8 |
dB dB |
|
Group Delay (per 40 MHz segment) |
Linear Parabolic Ripple |
0.01 0.003 1.0 |
ns/MHz ns/MHz2 ns p-p |
|
Transmit Band Noise Output Power Density |
TX Band RX Band (C-,X-,Ku-bands) RX Band (S-band) |
-75 -150 See options |
dBW/4 KHz dBW/4 KHz |
|
Receive Band Noise Output Power Density |
S-Band, with optional filter S-Band, without optional filter |
-155 -95 |
dBW/4 KHz dBW/4 KHz |
|
Residual AM Noise |
0 - 10 KHz 10 KHz - 500 KHz 500 KHz - 1 MHz |
-45 -20 (1.25 + log F) -80 |
dBc dBc dBc |
|
Phase Noise (SSPA only) |
Offset frequency from carrier 10 Hz 100 Hz 1 KHz 10 KHz 100 KHz 1 MHz |
-90 -100 -110 -120 -125 -130 |
dBc/Hz dBc/Hz dBc/Hz dBc/Hz dBc/Hz dBc/Hz |
Uplink Trucks, Mobile satcom, SOTM, Teleports, VSAT Networks, News Gathering
