Novelsat NS2000 NS3 Satellite Video Broadcast Demodulator
Input Frequency either L-Band or IF, Supports DVB standards as well as NS3, maximizes bandwidth efficiency
NS2000 NS3 Satcom Demodulator
Novelsat's NS2000 is a state-of-the-art NS3 demodulator that supports all common modulation methods: DVB-S, DVB-S2, DVB-SNG, and the innovative NS3. A notably robust receiver, the NS2000 features groundbreaking signal processing and error correction, enhancing impairment resistance. It offers dual channel support and output for any two stream types - 2XASI, 2XGigabit and ASI & Gigabit.
NS3 System Features
Lower Satellite Bandwidth: Savings of 20% to 78% satellite bandwidth (over available DVB-S2 equipment in the market)
Higher Data Rate: Increases transmitted data rate by over 100% (over available DVB-S2 equipment in the market)
Smaller Dish: Reduction of dish size. Achieves the same data rate using a smaller dish
High Data Rate
The Novelsat NS2000 supports exceptionally high data rates, reaching up to 365Mbps using 70Msps in NS3 mode of operation, and is the only product that supports transmission of one carrier over a 72MHz transponder.
Multi Channel
NS2000's dual channel option diverts a stream to either of the two interfaces on the board, or any combination thereof - enabling transmission quality that is solely dependent upon interface content. Dual channel operation also enables the combination of Ethernet Stream and ASI, easing migration to Ethernet streaming.

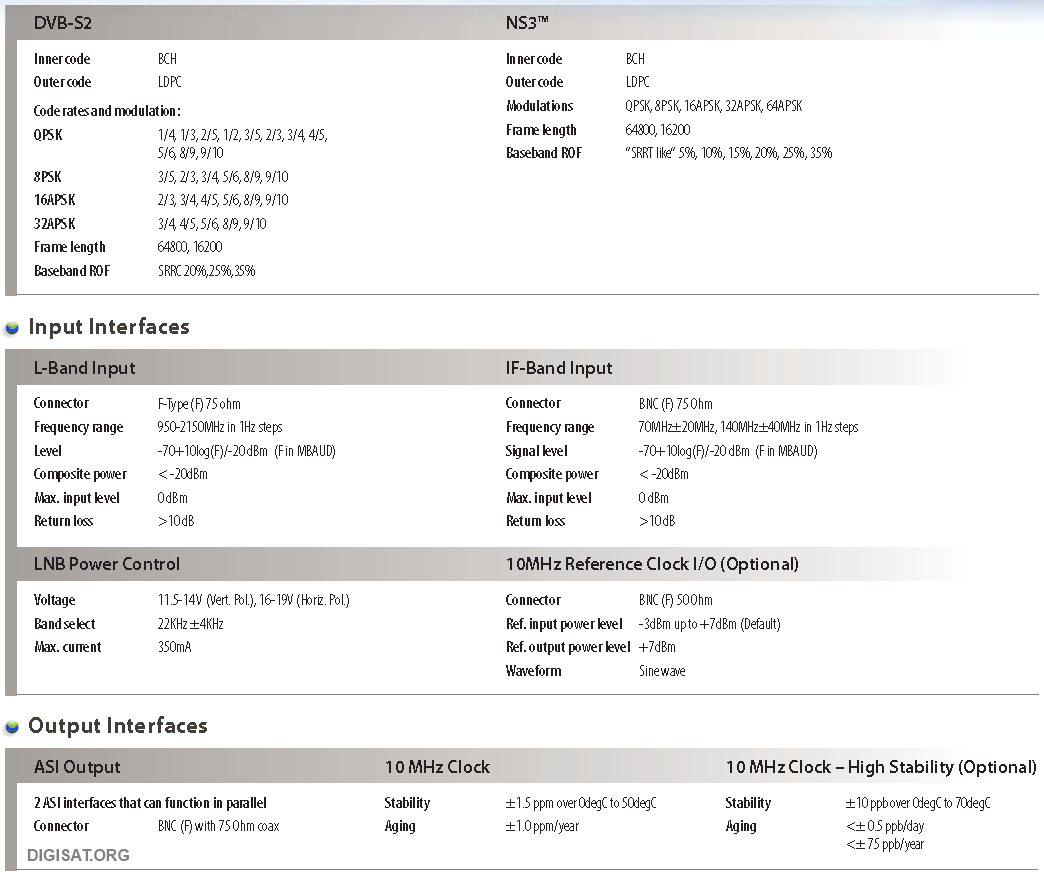

Key Features
Compatible with NovelSat NS3 protocol
DVB-S2 (EN302-307) compliant
Data rate of up to 365Mbps
DDC - Dynamic Distortion Compensator for Non-Linear Channels
Dual channel mode
Dual ASI output interface
Optional dual Ethernet 1Gb output interface
Extended L-Band 950MHz-2150MHz
IF output mode 50MHz-180MHz (either L-Band/IF)
Optional 10MHz reference (In/Out)
ACM mode
Extended L-Band 950MHz-2150MHz, IF output mode 50MHz-180MHz (either L-Band/IF), Optional 10MHz reference (In/Out)
