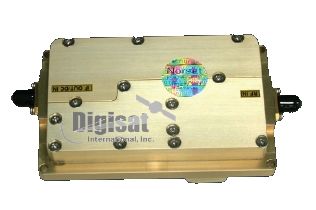

Norsat X1108HCS Ultra-Mini Compact X-Band PLL LNB (7.25- 7.75 GHz) SMA RF Output
X-Band Frequency: 7.25 to 7.75 GHz, L.O. Stability: ±10.0 kHz , RF Output: SMA Connector, 0.8 dB Noise Figure
The Norsat X1108HCS X-Band Super Compact PLL Low Noise Block Converter provides high stability and outstanding RF performance over X-Band satellite frequencies from 7.25- 7.75 GHz. The X1108HCS LNB features a highly stable local oscillator and L-Band RF output configuration is provided via a SMA connector. X-Band RF frequency input is accomplished via a precision SMA-connector.
Local oscillator frequency: 6.30 GHz
Noise Figure: 0.8 dB

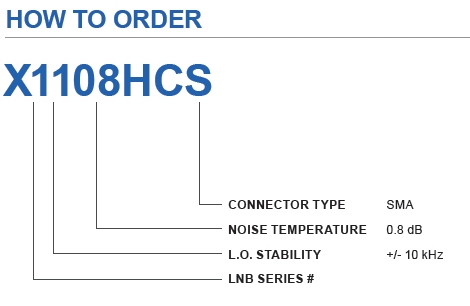

Norsat X1108HCS Series LNB Ordering Information

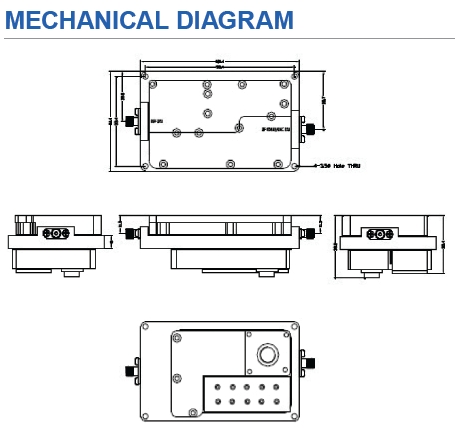

Outline Diagram
TYPICAL SPECIFICATIONS
Noise Figure: 0.8 dB
L.O. stability ±10.0 kHz (over temperature excl offset)
Phase noise (SSB): -72 dBc / Hz at 1 kHz, -82 dBc / Hz at 10 kHz, -92 dBc / Hz at 100 kHz
Input VSWR 2.0 : 1
Output VSWR 2.0 : 1
Conversion gain 60 dB
Output P1dB 10 dBm
Power requirements +15 to +24 V supplied through center conductor of IF cable
Current drain 230 mA
X-Band RF Input: SMA Connector
L-Band RF Output: SMA
Dimensions 101 (L) x 60 (W) x 30 (H) mm
Weight <200 g
Temperature Range -40°C to +60°C
Frequency Bands Available
|
Input frequency (GHz) |
7.25 to 7.75 |
|
L.O. frequency (GHz) |
6.30 |
|
Output frequency (MHz) |
950 to 1450 |
Military Communications Systems, Milsatcom Terminals
