Norsat X1000HAF Compact X-Band PLL LNB (7.25- 7.75 GHz) F-Connector
X-Band Frequency: 7.25 to 7.75 GHz, L.O. Stability: ±12.5 kHz , RF Output: F-Connector, 0.7 dB Noise Figure
The Norsat X1000HAF X-Band PLL Low Noise Block Converter provides high stability and outstanding RF performance over X-Band satellite frequencies from 7.25- 7.75 GHz. The X1000HAF X-Band LNB features a highly stable local oscillator and L-Band RF output configuration is 75-ohm "F" connector. X-Band RF frequency input is accomplished via a precision WR112 grooved waveguide flange.
Local oscillator frequency: 6.30 GHz
Noise Figure: 0.7 dB
Norsat X1000HAF Series LNB Ordering Information

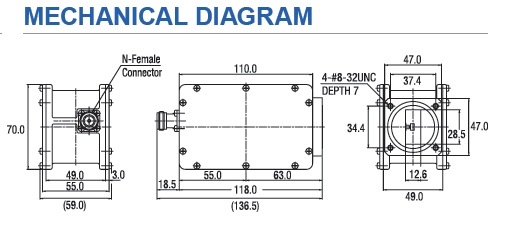

Outline Diagram
KEY SPECIFICATIONS |
|
| Product Family | 1000 Series |
| Band | X-Band |
| LO Type | PLL |
| # of onboard LOs | Single-band |
| LO Stability | +/- 12.5 kHz |
| Noise Figure | 0.7 dB |
| Input Frequency - Band 1 | X-Band: 7.25 - 7.75 GHz |
| Output Frequency 1 | L-Band: 950 - 1450 MHz |
RF |
|
| LO Frequency 1 | 6.30 GHz |
| Phase Noise @ 1KHz offset | -75 dBc/Hz |
| Phase Noise @ 10KHz offset | -85 dBc/Hz |
| Phase Noise @ 100KHz offset | -95 dBc/Hz |
| Conversion Gain | 56 dBm |
| Input VSWR | 2.0 : 1 |
| Output VSWR | 2.0 : 1 |
| Output P1dB compression point | 5 dBm |
ELECTRICAL |
|
| Power Requirements | 15 - 24 V |
| Current Drain | 230 mA |
INTERFACE |
|
| RF Input Connector | WR112 |
| RF Output Connector | F-75 Ohm |
M&C |
|
| LED Indicators | None |
ENVIRONMENTAL |
|
| Temperature - Operational | -40 to +60°C |
| Humidity | 0 - 95% |
PHYSICAL |
|
| Dimensions (L x W x H) | 137 x 70 x 59 mm |
| Weight | 600 g |
Naval Maritime 3-Axis Antenna Systems, Military & Government Communications Systems, Milsatcom Terminals, Mobile Tactical VSAT Systems, Mission Critical Satcom
