Norsat Q1000HF Q-Band (40.50 - 41.0 GHz) PLL LNB F-Type
Login To See Price
SKU
NST-Q1000HF
Norsat Q1000HF Q-Band (40.50 - 41.0 GHz) PLL LNB F-Type is available to buy in increments of 1
Q1000HF Q-Band PLL LNB

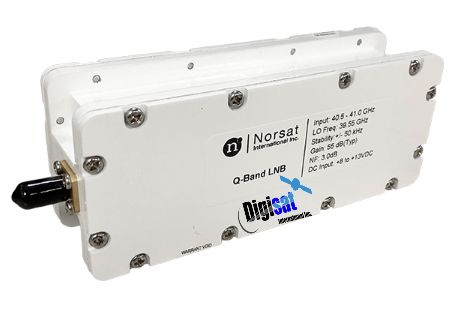

The Norsat Q1000HF Q-band PLL LNBs offer exceptional high frequency flexibility with increased conversion gain and gain flatness allowing users the ability to reliably receive a narrower band transmission from brand new cutting edge Q-band satellite networks. The Q1000HF series is available in frequencies ranging from 40.50 to 41.0 GHz:
Outline Dimensions
Ordering Info
Input: (waterproof) WR-22 waveguide
Output: F-Type (75 ohm)
KEY SPECIFICATIONS |
|
| Product Family | 1000 Series |
| Band | Q-Band |
| LO Type | PLL |
| # of onboard LOs | Single-band |
| LO Stability | +/- 50 kHz |
| Noise Figure | 3 dB |
| Input Frequency - Band 1 | Q-Band: 40.5 - 41.0 GHz |
| Output Frequency 1 | L-Band: 950 - 1450 MHz |
RF |
|
| LO Frequency 1 | 39.55 GHz |
| Phase Noise @ 1KHz offset | -70 dBc/Hz |
| Phase Noise @ 10KHz offset | -80 dBc/Hz |
| Phase Noise @ 100KHz offset | -90 dBc/Hz |
| Conversion Gain | 50 - 60 dB |
| Gain Variation over operating band | ≤ 3 dB p-p |
| Input VSWR | 2.0 : 1 |
| Output VSWR | 1.8 : 1 |
| Output P1dB compression point | 5 dBm |
ELECTRICAL |
|
| Power Requirements | 8 – 13 V DC |
| Current Drain | 1000 mA max. |
INTERFACE |
|
| RF Input Connector | WR-22 waveguide grooved |
| RF Output Connector | F-75 Ohm |
ENVIRONMENTAL |
|
| Temperature - Operational | -40 to +50°C |
| Temperature - Storage | -40 to +80°C |
PHYSICAL |
|
| Dimensions (L x W x H) | 146 x 55 x 39 mm |
| Weight | 0.7 kg |
Military, Defense, R&D and remote communications where new cutting edge high frequency Q-band satellite reception is required.
