Q1000HN Q-Band PLL LNB

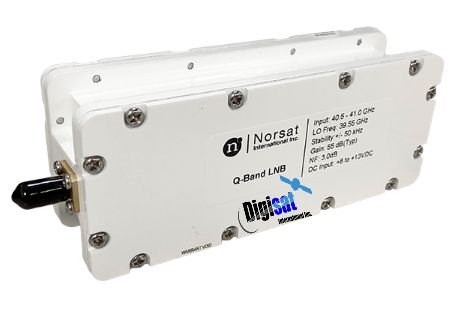

The Norsat Q1000HN Q-band PLL LNBs offer exceptional high frequency flexibility with increased conversion gain and gain flatness allowing users the ability to reliably receive a narrower band transmission from brand new cutting edge Q-band satellite networks. The Q1000HN series is available in frequencies ranging from 40.50 to 41.0 GHz:

Q1000HN Frequency Bands

Outline Dimensions

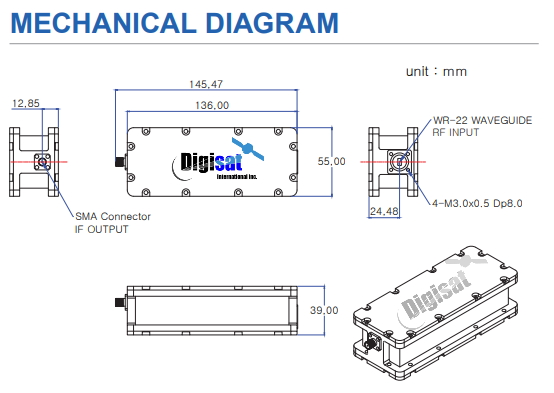

Q1000HN Mechanical Diagram

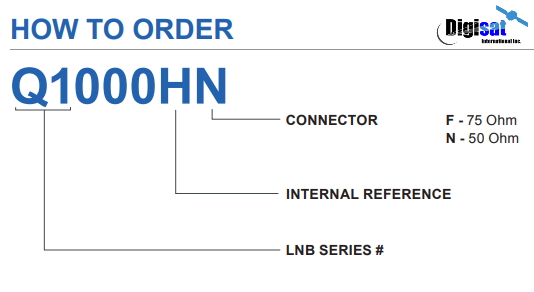

Ordering Info

Norsat Q1000HN Ordering Info

Input: (waterproof) WR-22 waveguide

Output: Type-N (50 ohm)

Technical Specifications

KEY SPECIFICATIONS
Product Family	1000 Series
Band	Q-Band
LO Type	PLL
# of onboard LOs	Single-band
LO Stability	+/- 50 kHz
Noise Figure	3 dB
Input Frequency - Band 1	Q-Band: 40.5 - 41.0 GHz
Output Frequency 1	L-Band: 950 - 1450 MHz
RF
LO Frequency 1	39.55 GHz
Phase Noise @ 1KHz offset	-70 dBc/Hz
Phase Noise @ 10KHz offset	-80 dBc/Hz
Phase Noise @ 100KHz offset	-90 dBc/Hz
Conversion Gain	50 - 60 dB
Gain Variation over operating band	≤ 3 dB p-p
Input VSWR	2.0 : 1
Output VSWR	1.8 : 1
Output P1dB compression point	5 dBm
ELECTRICAL
Power Requirements	8 – 13 V DC
Current Drain	1000 mA max.
INTERFACE
RF Input Connector	WR-22 waveguide grooved
RF Output Connector	N-50 Ohm
ENVIRONMENTAL
Temperature - Operational	-40 to +50°C
Temperature - Storage	-40 to +80°C
PHYSICAL
Dimensions (L x W x H)	146 x 55 x 39 mm
Weight	0.7 kg
