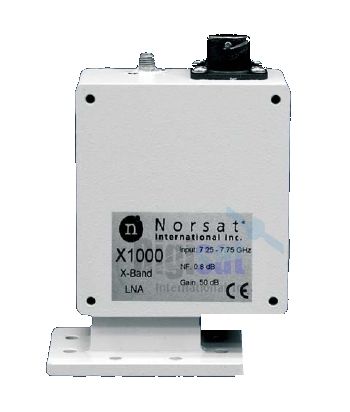

Norsat LNA-X1000S X-Band LNA (7.25 to 7.75 GHz) SMA RF Output
Rx Frequency: 7.25 - 7.75 GHz, Noise figure 0.8 dB, Input Waveguide CPR-112G, Gain flatness 4 dB p - p max, SMA connector
LNA-X1000S Series X-Band Low Noise Amplifier
The Norsat LNA-X1000S X-Band LNAs offer Standard and Extended X-Band frequencies from 7.25 - 7.75 GHz. SMA RF output connector with power via a separate DC connector or via RF output.
Key Features
Small size, ideal for feed mounting
RoHS Compliant
Highly Versatile
Norsat X-Band LNAs are ideal for applications such as:
Military and Government Satcom
Fixed Earth Station Antennas
Mobile Terminals
High stability systems
Unmanned ISR (intelligence, surveillance and reconnaissance)

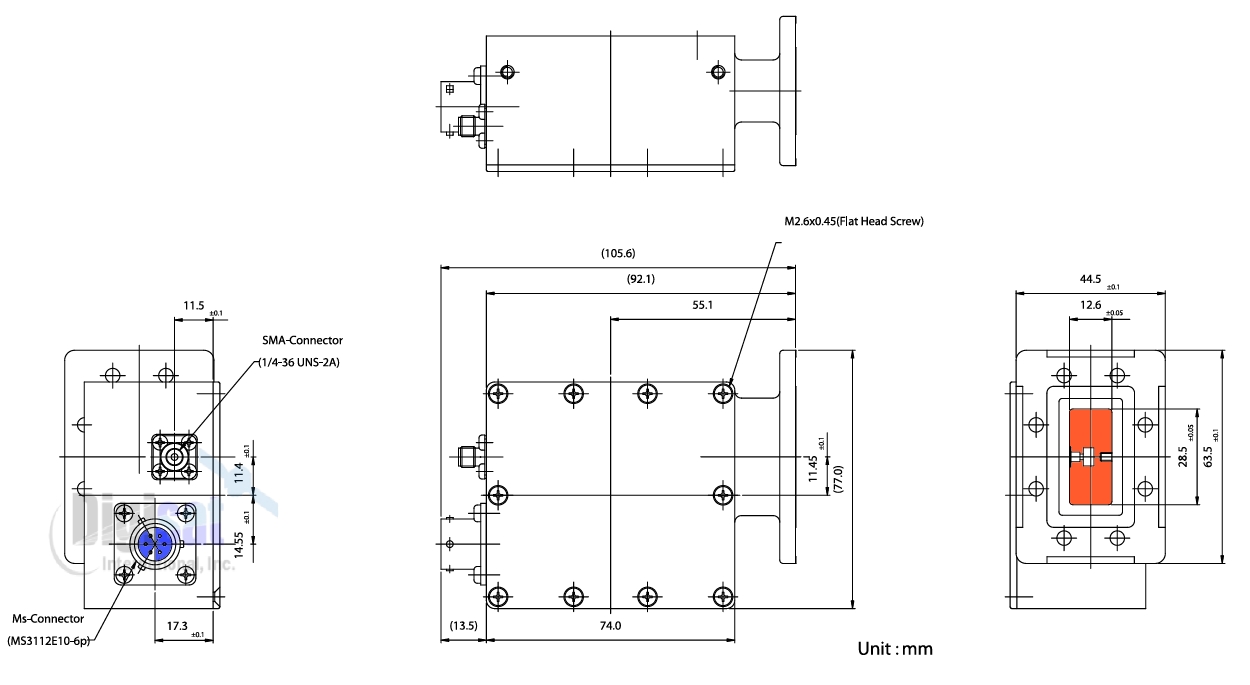

Outline Dimensions
Specifications
SMA connector RF Output
Frequency 7.25 to 7.75 GHz
Noise figure 0.8 dB
Input VSWR 2.0 : 1
Output VSWR 2.0 : 1
Output P1dB +10 dBm
Dimensions 106 (L) x 77 (W) x 47 (H) mm
Weight 550g
Input Waveguide CPR-112G
DC Power MS3112E10-6P
Gain 50 dB
Gain flatness 4 dB p - p max
Power requirements +15 to +24 V
Current drain 150 mA
Temperature range -30°C to +60°C
How to Order
The X1000S series LNAs offer Standard and Extended X-Band frequencies from 7.25 - 7.75 GHz. Special custom order units are available from Digisat.
