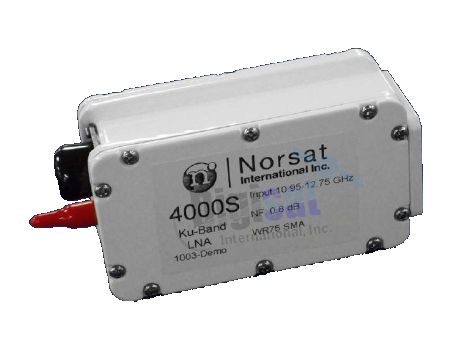

Norsat LNA-4000CF Ku-Band LNA (10.7-12.75 GHz) F-Type Input Connector
Rx Frequency: 10.7-12.75 GHz, Noise figure 0.8 dB @ 23°C, Input VSWR 2.0:1
LNA-4000CF Series Ku-Band Low Noise Amplifier
The Norsat LNA-4000CF Ku-Band LNAs offer Standard and Extended Ku-Band frequencies from 10.7 - 12.75 GHz. "F"-connector RF input.
Key Features
Small size, ideal for feed mounting
RoHS Compliant
Highly Versatile
Ku-Band LNAs are ideal for applications such as:
Fixed Earth Station Antennas
Mobile Terminals
High stability systems
Unmanned ISR (intelligence, surveillance and reconnaissance)
Outline Dimensions
Specifications
Type-"F" Input connector
Frequency 10.7 - 12.75 GHz
Noise figure 0.8 dB @ 23°C
Input VSWR 2.0 : 1
Output VSWR 2.0 : 1
Output P1dB 8 dBm
Dimensions 120 (L) x 60 (W) x 43 (H) mm
Weight 400 g
Input Waveguide WR75
DC Power MS3112E10-6P
Gain 55 dB
Gain flatness 4 dB p - p max
Power requirements +15 to +24 V
Current drain 150 mA
Temperature range -40°C to +60°C
How to Order
The 4000CF series LNAs offer Standard and Extended Ku-Band frequencies from 10.7 - 12.75 GHz. Special custom order units are available from Digisat.
