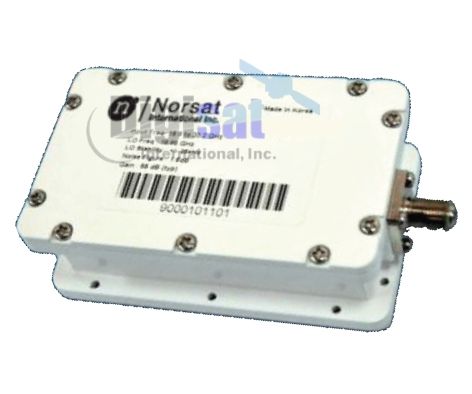

Norsat 9200HAEB-3 Ka Dual Frequency Band LNB
Frequency bands: 17.70-18.95 and 18.95-20.20 GHz, L.O. Stability: ±25 KHz, RF Output: Type-N or F Connector, 1.6 dB Noise Figure
9200HAEB-3 Ka-Band LNB
The Norsat 9200HAEB-3 is a precision Ka-Band Low Noise Block Converter (LNB) that provides high stability reception of dual Ka frequency bands. With a wide range of RF input frequencies, the 9200HAEB-3 series is ideal for all Ka-Band satellite applications.
|
|
AE |
BE |
|
Frequency band (GHz) |
17.70 to 18.95 |
18.95 to 20.20 |
|
L.O. frequency (GHz) |
16.75 |
18.0 0 |
|
IF frequency (MHz) |
950 to 1800 |
950 to 2200 |
The Norsat 9200HAEB-3 Ka LNB offers a highly stable RF output signal for use by all L-Band modems. RF output connector options consist of a 50-ohm type-N female or a 75-ohm F-connector. Ka-Band RF frequency input is accomplished by a precision grooved WR42 waveguide flange.
Noise Figure: 1.6 dB
Norsat 9200HAEB-3 LNB Ordering Information
TECHNICAL SPECIFICATIONS
Noise figure 1.6 dB max
L.O. stability ±25 KHz, ±50 KHz
Phase noise (SSB) max -60 dBc/Hz at 100Hz
-70 dBc/Hz at 1kHz
-80 dBc/Hz at 10kHz
-100 dBc/Hz at 100 kHz
-100 dBc/Hz at1 MHz
Input VSWR 2.2 : 1
Output VSWR 2.0 : 1
Conversion gain 58 dB (min)
Gain flatness over 1000 MHz 2 dB p-p
Output P1dB 5 dBm
Image rejection 40 dBc min
DC power
Band 1 13 V
Band 2 18 V
DC current 350 mA
Waveguide Flange WR-42
Output connector N:50 Ω, F: 75 Ω
Spurious
In band -60 dBc
Out band -50 dBc
Dimensions 132.3(L) x 70(W) x 39(H) mm
Weight 500 g
Temperature -40 to + 60°C
Operating Frequencies
|
|
AE |
BE |
B |
C |
|
Frequency band (GHz) |
17.70 to 18.95 |
18.95 to 20.20 |
19.20 to 20.20 |
20.20 to 21.20 |
|
L.O. frequency (GHz) |
16.75 |
18.0 0 |
18.25 |
19.25 |
|
IF frequency (MHz) |
950 to 1800 |
950 to 2200 |
950 to 1950 |
950 to 1950 |
All VSAT and Earth Station systems, Military, Government, Maritime
