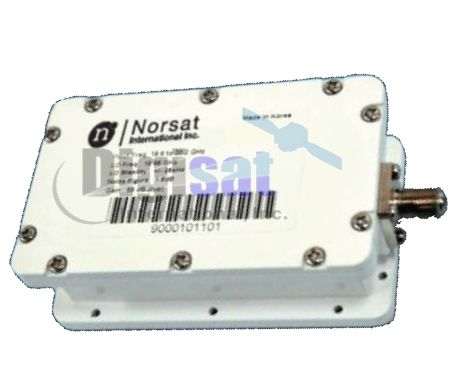

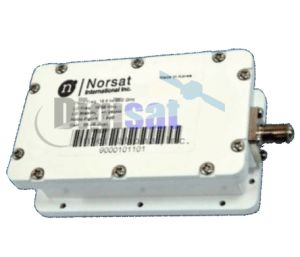

Norsat 9016XAEB-3 Ka-Band Dual External Reference LNB
Frequency: 17.70 - 18.95 and 18.95 - 20.20 GHz, L.O. Stability: Ext. Ref., RF Output: F or Type-N Connector, 1.6 dB Noise Figure
9016XAEB-3 Ka-Band LNB
The Norsat 9016XAEB-3 Ka-Band Low Noise Block Converter (LNB) is compatible with any satellite system including prime focus and offset reflectors and all modems. The XAEB-3 LNB operates in both the AE and BE Ka frequency bands:
|
|
AE |
BE |
|
Frequency band (GHz) |
17.70 to 18.95 |
18.95 to 20.20 |
|
L.O. frequency (GHz) |
16.75 |
18.00 |
|
IF frequency (MHz) |
950 to 2200 |
950 to 2200 |
The Norsat 9016XAEB-3 Ka LNB offers a highly stable L-Band RF output frequency. L-Band RF output connector is a a 75-ohm type F or 50-Ohm N-Type. Ka-Band RF frequency input is accomplished with a precision grooved WR42 waveguide flange.
Noise Figure: 1.6 dB
Ordering Information
TYPICAL SPECIFICATIONS
Noise figure 1.6 dB max
L.O. stability Phase locked to ext. ref.
Phase noise (SSB) max -60 dBc/Hz at 100Hz
-70 dBc/Hz at 1kHz
-80 dBc/Hz at 10kHz
-100 dBc/Hz at 100 kHz
-100 dBc/Hz at1 MHz
Input VSWR 2.2 : 1
Output VSWR 2.0 : 1
Conversion gain 58 dB (min)
Gain flatness over 1000 MHz 2 dB p-p
Output P1dB 5 dBm
Image rejection 40 dBc min
DC power
Band 1 13 V
Band 2 18 V
DC current 350 mA
Waveguide Flange WR-42
Output connector N:50 Ω, F: 75 Ω
Spurious
In band -60 dBc
Out band -50 dBc
Dimensions 128(L) x 70(W) x 38.4(H) mm
Weight 500 g
Operating Temperature -40 to + 60°C
Frequency Bands Available
|
|
AE |
BE |
B |
C |
|
Frequency band (GHz) |
17.70 to 18.95 |
18.95 to 20.20 |
19.20 to 20.20 |
20.20 to 21.20 |
|
L.O. frequency (GHz) |
16.75 |
18.00 |
18.25 |
19.25 |
|
IF frequency (MHz) |
950 to 2200 |
950 to 2200 |
950 to 1950 |
950 to 1950 |
Use with all Ka-Band VSAT antennas and Earth Stations with Prime Focus and Offset reflectors
