Norsat 9016XAEBE-3N Dual Ka-Band External Reference LNB Type-N
Input: 17.70 - 18.95 & 18.95 - 20.20 GHz, L.O.: Ext. Ref., RF Output: Type-N Connector, 1.6 dB Noise Figure
9016XAEBE-3N Ka-Band LNB

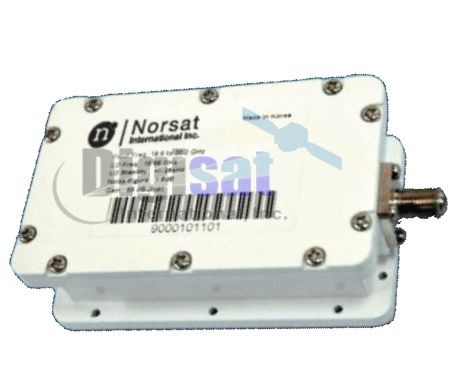

The Norsat 9016XAEBE-3N Ka-Band Low Noise Block Converter (LNB) is compatible with any satellite system including prime focus and offset reflectors and all modems.
Input Frequency:
Band 1: 17.70 - 18.95 GHz
Band 2: 18.95 - 20.20 GHz
LO Stability: Phase Locked to External Reference
Noise Temperature: 1.6 dB
XAEBE-3N LNB Input, Output and L.O. frequencies:
|
|
AE |
BE |
|
Frequency band (GHz) |
17.70 to 18.95 |
18.95 to 20.20 |
|
L.O. frequency (GHz) |
16.75 |
18.00 |
|
IF frequency (MHz) |
950 to 2200 |
950 to 2200 |
The 9016XAEBE-3N Ka LNB offers a highly stable L-Band RF output. 50-ohm Type-N. Ka-Band input: precision grooved WR42 waveguide flange.
Noise Figure: 1.6 dB
Frequency Bands
9016XAE-3N Ordering Information
Mechanical Diagram
KEY SPECIFICATIONS |
|
| Product Family | 9000 Series |
| Band | Ka-Band |
| LO Type | External |
| # of onboard LOs | Dual-band |
| LO Stability | Phase Locked to External Reference at 10MHz |
| Noise Figure | 1.6 dB |
| Input Frequency - Band 1 | Ka-Band: 17.70 - 18.95 GHz |
| Input Frequency - Band 2 | Ka-Band: 18.95 - 20.20 GHz |
| Output Frequency 1 | L-Band: 950 - 2200 MHz |
| Output Frequency 2 | L-Band: 950 - 2200 MHz |
RF |
|
| LO Frequency 1 | 16.75 GHz |
| LO Frequency 2 | 18.00 GHz |
| Control Signal 1 | 13 V |
| Control Signal 2 | 18 V |
| Phase Noise @ 100Hz offset | -60 dBc/Hz |
| Phase Noise @ 1KHz offset | -70 dBc/Hz |
| Phase Noise @ 10KHz offset | -80 dBc/Hz |
| Phase Noise @ 100KHz offset | -100 dBc/Hz |
| Phase Noise @ 1MHz offset | -100 dBc/Hz |
| Conversion Gain | 58 dBm min |
| Gain Variation over operating band | 2 dBm p-p |
| Input VSWR | 2.2 : 1 |
| Output VSWR | 2.0 : 1 |
| Spurious | -60 dBc (in band) ; -50 dBc (out of band) |
| Output P1dB compression point | 5 dBm |
| Image Rejection | 40 dBc min |
ELECTRICAL |
|
| Current Drain | 350 mA |
INTERFACE |
|
| RF Input Connector | WR-42 waveguide grooved |
| RF Output Connector | N-50 Ohm |
M & C |
|
| LED Indicators | None |
ENVIRONMENTAL |
|
| Temperature - Operational | -40 to +60°C |
| Humidity | 0 - 95% |
PHYSICAL |
|
| Dimensions (L x W x H) | 128 x 70 x 38 mm |
| Weight | 500 g |
Use with all Ka-Band VSATs and Earth Stations with Prime Focus, Cassegrain and Offset reflectors
