Norsat Ka-Band 9000XD-3 Externally Referenced LNB (21.20 - 22.20 GHz)
Frequencies from: 21.20 - 22.20 GHz, L.O. Stability: Phase locked to External Reference, RF Output: "F"-female or Type-N Connector, 1.6 dB Noise Figure, LO frequency: 20.25GHz

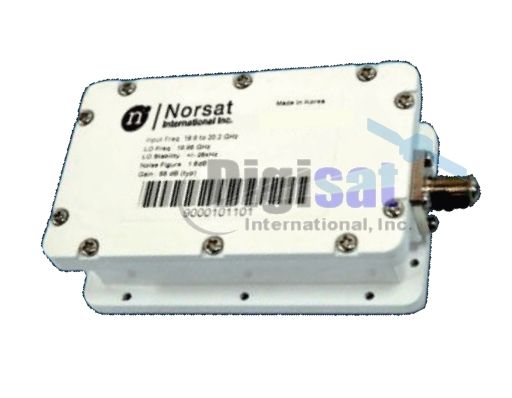

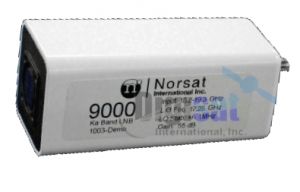

9000XD-3 Ka-Band Ext. Reference LNB
The Norsat 9000XD-3 Ka-Band External Reference Low Noise Block Down Converter (LNB) provides excellent RF performance over Ka-Band satellite frequencies ranging from 21.20 - 22.20 GHz. The 9000XD-3 Series LNB features a extremely stable local oscillator that's Phase locked to External Reference. L-Band 950 - 1950 MHz IF output configuration is provided via either a 50-ohm type-N female connector or an F-connector. RF frequency input is accomplished with a precision grooved WR42 waveguide flange.
Type F model: 9000XD-3F
N Connector: 9000XD-3N
Local oscillator frequency: 20.25 GHz
Noise Figure: 1.6 dB

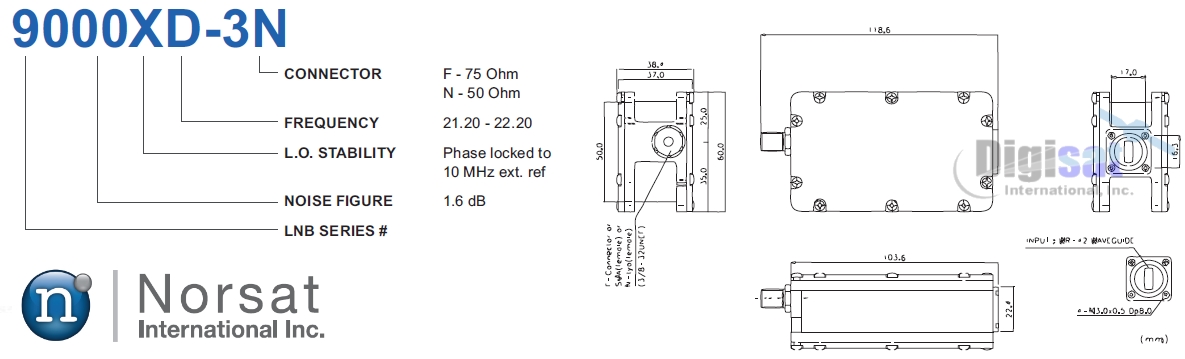

LNB Ordering Information
Noise figure 1.6 dB max
L.O. stability Phase locked to External Reference
Phase noise (SSB) max -70 dBc/Hz at 1kHz
-80 dBc/Hz at 10kHz
-100 dBc/Hz at 100 kHz
Input VSWR 2.2 : 1
Output VSWR 2.2 : 1
Frequency band (GHz) 21.20 to 22.20
L.O. frequency (GHz) 20.25
IF frequency (MHz) 950 to 1950
Conversion gain 58 dB (typ)
Output P1dB 5 dBm
Image rejection 40 dBc min
DC power +12 to +24V
DC current 300 mA
Waveguide Flange WR42
Output connector N or F (Female)
Dimensions 137(L) x 70(W) x 59(H) mm
Weight 450 g
Operating Temperature -30 to + 60°C
Gain latness ± 2 dBp-p max
Satellite service reception, Television Receive Only (TVRO), High Throughput Services
