Norsat 9000XI Ka-Band Isolator ISO LNB (20.20 - 21.20 GHz)
Frequencies from: 20.20 - 21.20 GHz, L.O. Stability: Phase locked to External Reference, RF Output: Type-N, SMA or F-connector, 1.7 dB Noise Figure, LO frequency: 19.2 GHz

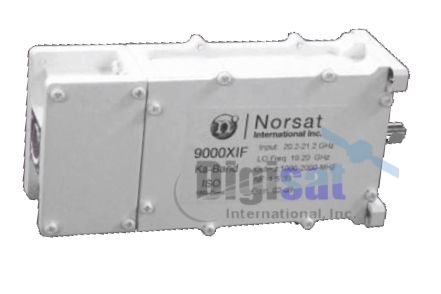

9000XI Ka-Band ISO LNB
The Norsat 9000XI Ka-Band ISO Low Noise Block Down Converter (LNB) delivers excellent RF performance over Ka-Band satellite frequencies ranging from 20.20 - 21.20 GHz. With its integral isolator, the 9000XI LNB features an extremely stable local oscillator that's Phase locked to External Reference. L-Band IF output is from 1000 - 2000 MHz and is provided via a precision type-N, F or SMA female connector. RF frequency input is a WR42 grooved waveguide flange.
LNB Part Numbers
Type N: 9000XIN
SMA: 9000XIS
F-Connector: 9000XIF
Local oscillator frequency: 19.20 GHz
Noise Figure: 1.7 dB @ 23°C

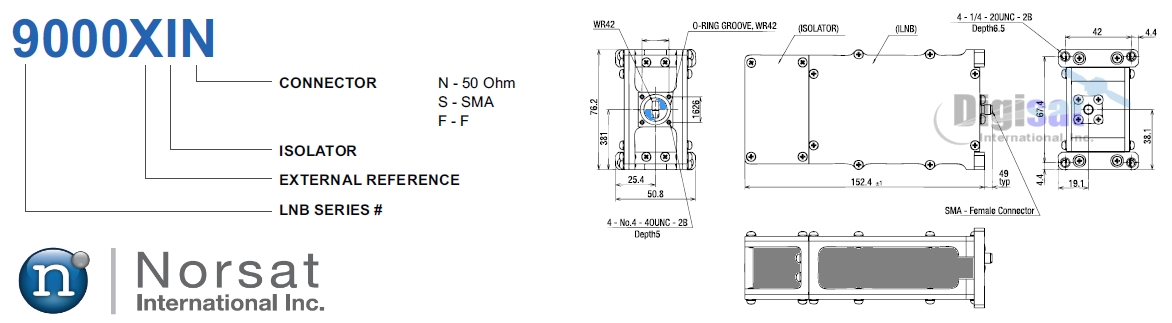

Norsat 9000XI LNB Ordering Information
KEY SPECIFICATIONS |
|
| Product Family | 9000 Series |
| Band | Ka-Band |
| LO Type | External |
| # of onboard LOs | Single-band |
| LO Stability | Phase Locked to External Reference |
| Noise Figure | 1.8 dB |
| Input Frequency - Band 1 | Ka-Band: 20.20 - 21.20 GHz |
| Output Frequency 1 | L-Band: 1000 - 2000 MHz |
RF |
|
| LO Frequency 1 | 19.20 GHz |
| Phase Noise @ 1KHz offset | -72 dBc/Hz |
| Phase Noise @ 10KHz offset | -82 dBc/Hz |
| Phase Noise @ 100KHz offset | -92 dBc/Hz |
| Conversion Gain | 60 dB typ |
| Input VSWR | 1.3 : 1 |
| Output VSWR | 1.8 : 1 |
| Output P1dB compression point | 15 dBm |
ELECTRICAL |
|
| Power Requirements | 15 - 24 V |
| Current Drain | 400 mA |
INTERFACE |
|
| RF Input Connector | WR-42 waveguide grooved |
| RF Output Connector | F-75 Ohm |
M & C |
|
| LED Indicators | None |
ENVIRONMENTAL |
|
| Temperature - Operational | -40 to +60°C |
| Temperature - Storage | -50 to +70°C |
PHYSICAL |
|
| Dimensions (L x W x H) | 153 x 77 x 51 mm |
| Weight | 700 g |
All Ka applications where an internal built-in isolator is required
