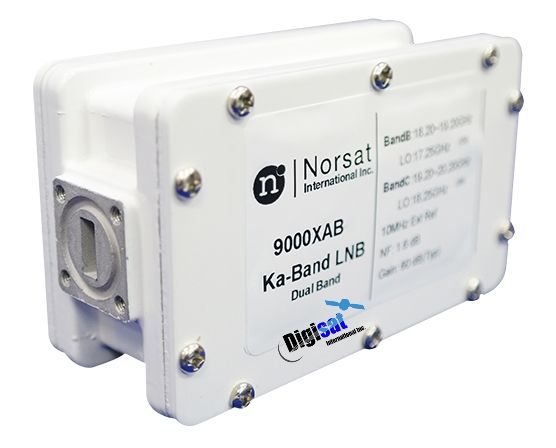

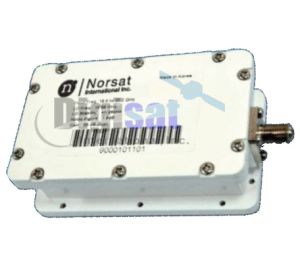

9000XABN Dual Ka-Band Ext. Ref. LNB

Norsat 9000XABN Dual Ka-Band (18.20 - 20.20 GHz) External Reference LNB, Input Frequency: Band-1: 18.20 - 19.20 GHz, Band-2: 19.20 - 20.20 GHz, LO: 17.25GHz @ 13VDC, 18.25GHz @ 18VDC, Stability: Phase Locked to Ext. Ref., Noise Temp: 1.6 dB

The 9000XABN series LNB is compatible with any satellite system including prime focus, offset reflectors and all modems. The XABN series is available in three distinct frequency configurations:

Norsat 9000XABN frequency bands

The XABN series Ka LNB also features a highly stable L-Band RF output phase locked to external reference. L-Band RF output connector: 50-ohm Type-N. RF input: precision grooved WR42 waveguide flange.

9000 XABN Ordering Information

Norsat 9000XABN Ordering Info

Outline Dimensions

Technical Specifications

KEY SPECIFICATIONS
Product Family	9000 Series
Band	Ka-Band
LO Type	External
# of onboard LOs	Dual-band
LO Stability	Phase Locked to External Reference
Noise Figure	1.6 - 1.8 dB
Input Frequency - Band 1	Ka-Band: 18.20 - 19.20 GHz
Input Frequency - Band 2	Ka-Band: 19.20 - 20.20 GHz
Output Frequency 1	L-Band: 950 - 1950 MHz
Output Frequency 2	L-Band: 950 - 1950 MHz

RF
LO Frequency 1	17.25 GHz
LO Frequency 2	18.25 GHz
Control Signal 1	13 V
Control Signal 2	18 V
Phase Noise @ 1KHz offset	-70 dBc/Hz
Phase Noise @ 10KHz offset	-78 dBc/Hz
Phase Noise @ 100KHz offset	-95 dBc/Hz
Conversion Gain	60 dB typ
Gain Variation over operating band	≤ 5 dB p-p
Input VSWR	2.5 : 1
Output VSWR	2.5 : 1
Output P1dB compression point	5 dBm

ELECTRICAL
Power Requirements	12 - 24 V
Current Drain	400 mA

INTERFACE
RF Input Connector	WR-42 waveguide grooved
RF Output Connector	Type-N 50 Ohm

ENVIRONMENTAL
Temperature - Operational	-40 to +60°C
Temperature - Storage	-40 to +80°C

PHYSICAL
Dimensions (L x W x H)	118 x 60 x 45 mm
Weight	400 g
