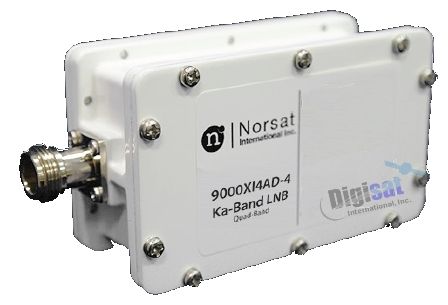

Norsat 9000X4ECN Quad Ka-Band (17.20 - 21.20 GHz) EXT REF LNB

Norsat 9000X4ADN Quad Ka-Band (18.20 - 22.20 GHz) EXT REF LNB Type-N

Norsat 9100H4ADF Quad Ka-Band (18.20 - 22.20 GHz) PLL LNB F-Type

Be the first to review this product

SKU

NST-9000X4ECN

Norsat 9000X4ECN Quad Ka-Band (17.20 - 21.20 GHz) EXT REF LNB is available to buy in increments of 1

Quad-band operation, 17.20 - 21.20 GHz, Phase Locked to Ext. Reference

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Details

9000X4ECN Quad Ka-Band EXT REF LNB

The Norsat 9000X4ECN Ka-band Externally Referenced LNB offers four separate sub-bands for the utmost in frequency flexibility with exceptional conversion gain and spectral flatness, allowing users the ability to reliably receive narrower beamwidth downlinks from Ka satellite networks. The 9000X4ECN series is available in frequencies ranging from 17.2 to 21.2 GHz, in four sub-bands:

9000X4ECN Frequency Bands

Outline Dimensions

Norsat 9000X4ECN Mechanical Diagram

Ordering Info

Norsat 9000X4ECN Ordering configuration info

Input: (waterproof) WR-42 waveguide

Output: F-Type connector (75 ohm)

Technical Specifications

KEY SPECIFICATIONS
Product Family	9000 Series
Band	Ka-Band
LO Type	External
# of onboard LOs	Quad-band
LO Stability	Phase Locked to External Reference
Noise Figure	2.0 dB
Input Frequency - Band 1	Ka-Band: 17.20 - 18.20 GHz
Input Frequency - Band 2	Ka-Band: 18.20 - 19.20 GHz
Input Frequency - Band 3	Ka-Band: 19.20 - 20.20 GHz
Input Frequency - Band 4	Ka-band: 20.20 - 21.20 GHz
Output Frequency 1	L-Band: 950 - 1950 MHz
Output Frequency 2	L-Band: 950 - 1950 MHz
Output Frequency 3	L-Band: 950 - 1950 MHz
Output Frequency 4	L-Band: 950 - 1950 MHz
RF
LO Frequency 1	16.25 GHz
LO Frequency 2	17.25 GHz
LO Frequency 3	18.25 GHz
LO Frequency 4	19.25 GHz
Control Signal 1	13 V
Control Signal 2	13V /22 KHz tone
Control Signal 3	18 V
Control Signal 4	18V /22 KHz tone
Phase Noise @ 1KHz offset	Depends on External Reference
Phase Noise @ 10KHz offset	Depends on External Reference
Phase Noise @ 100KHz offset	Depends on External Reference
Conversion Gain	62 dB typ
Input VSWR	3.5 : 1 max.
Output VSWR	2.0 : 1
Output P1dB compression point	10 dBm
ELECTRICAL
Power Requirements	12 - 24 V
Current Drain	350 mA
INTERFACE
RF Input Connector	WR-42 waveguide grooved
RF Output Connector	Type-N 50 Ohm
ENVIRONMENTAL
Temperature - Operational	-40 to +60°C
Temperature - Storage	-40 to +80°C
PHYSICAL
Dimensions (L x W x H)	134 x 67 x 37 mm
Weight	550 g
