Norsat 9000LAF Ka-Band (18.2 - 19.2 GHz) DRO LNB (F-connector)

Norsat 8530N C-Band (3.4 to 4.2 GHz) Digital DRO LNB (N connector)

Norsat 3825N C-Band (3.4 to 4.2 GHz) PLL LNB (Type-N)

Be the first to review this product

$242.00

SKU

NST-9000LAF

Norsat 9000LAF Ka-Band (18.2 - 19.2 GHz) DRO LNB (F-connector) is available to buy in increments of 1

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Details

9000LAF Ka-Band DRO LNB

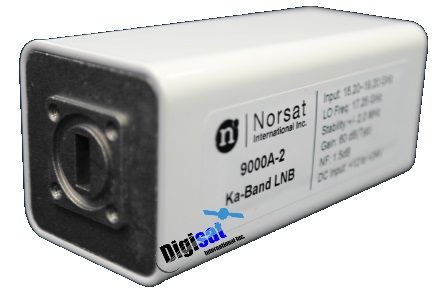

The Norsat 9000LAF Ka-Band DRO Low Noise Block Down Converter (LNB) provides excellent RF performance over Ka-Band satellite frequencies ranging from 18.20 - 19.20 GHz. The 9000LAF Series LNB features an extremely stable local oscillator that delivers ±2 MHz L.O. stability. L-Band 950 - 1950 MHz RF output configuration is provided via a F-connector. RF frequency input is accomplished with a precision grooved WR42 waveguide flange.

Local oscillator frequency: 17.25 GHz

Noise Figure: 1.5 dB

9000LAF Ka-Band LNB Frequency Configurations

9000LAF LNB Ordering Information

9000LAF LNB Outline Dimensions Diagram

Technical Specifications

KEY SPECIFICATIONS
Product Family	9000 Series
Band	Ka-Band
LO Type	DRO
# of onboard LOs	Single-band
LO Stability	+/- 2 MHz
Noise Figure	1.5 dB
Input Frequency - Band 1	Ka-Band: 18.20 - 19.20 GHz
Output Frequency 1	L-Band: 950 - 1950 MHz

RF SPECIFICATIONS
LO Frequency 1	17.25 GHz
Phase Noise @ 1KHz offset	-60 dBc/Hz
Phase Noise @ 10KHz offset	-75 dBc/Hz
Phase Noise @ 100KHz offset	-95 dBc/Hz
Conversion Gain	60 dB typ
Input VSWR	2.5 : 1
Output VSWR	2.5 : 1
Output P1dB compression point	5 dBm
Gain Flatness Ripple	≤ 5 dB p-p

ELECTRICAL SPECIFICATIONS
Power Requirements	12 - 24 V
Current Drain	200 mA

INTERFACE SPECIFICATIONS
RF Input Connector	WR-42 waveguide grooved
RF Output Connector	F-75 Ohm

ENVIRONMENTAL SPECIFICATIONS
Temperature - Operational	-30 to +60°C
Temperature - Storage	-40 to +80°C

PHYSICAL SPECIFICATIONS
Dimensions (L x W x H)	111 x 42 x 42 mm
Weight	300 g
