Norsat 9000CN Ka-Band DRO LNB (20.20 - 21.20 GHz) N-Type
Frequencies from: 18.20 - 19.30 GHz, L.O. Stability: ±1 MHz, RF Output: "F"-female or Type-N Connector, 1.3 dB Noise Figure

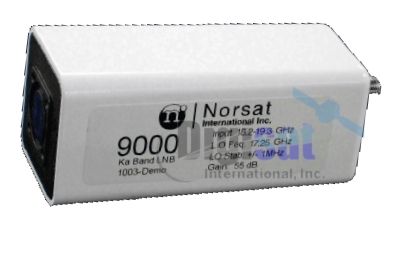

Norsat 9000CN Ka-Band DRO LNB
The Norsat 9000CN Ka-Band DRO Low Noise Block Down Converter (LNB) provides excellent RF performance over Ka-Band satellite frequencies ranging from 20.20 - 21.20 GHz. The 9000C Series LNB features an extremely stable local oscillator that delivers ±1 MHz L.O. stability. L-Band 950 - 1950 MHz RF output is provided via a 50-ohm type-N female connector. RF frequency input is accomplished with a precision grooved WR42 waveguide flange.
Local oscillator frequency: 19.25 GHz
Noise Figure: 1.3 dB

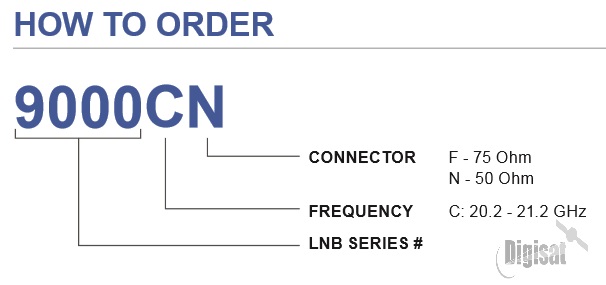

9000CN LNB Ordering Information
Noise figure 1.3 dB
L.O. stability ±1 MHz
(over temperature excl offset)
Phase noise -50 dBc/Hz at 1kHz
(SSB) -65 dBc/Hz at 10kHz
-90 dBc/Hz at 100kHz
Input VSWR 2.5 : 1
Output VSWR 2.3 : 1
Conversion gain 55 dB
Output P1dB 5 dBm
Power requirements +15 to +24 V supplied through center conductor of IF cable
Current drain 175 mA
Input Waveguide WR42
Dimensions 111 (L) x 42 (W) x 42 (H) mm
Weight 350 g / 12.5 oz
Temperature Range -40°C to + 60°C
Typical service 9000A
Input frequency (GHz) 18.2 - 19.3
L.O. frequency (GHz) 17.25
Output frequency (MHz) 950 to 2050
Ka-Band Satellite service reception, Commercial TVRO, Broadband Services
