Norsat 9000CF Ka-Band DRO LNB (20.20-21.20 GHz) Type-F
Input frequency: 20.2 - 21.2 GHz, Output: 950 to 1950 MHz, Waveguide flange: WR42
Norsat 9000CF Ka-Band LNB
Noise figure 1.3 dB
L.O. stability ±1 MHz
(over temperature excl offset)
Phase noise -50 dBc/Hz at 1kHz
(SSB) -65 dBc/Hz at 10kHz
-90 dBc/Hz at 100kHz
Input VSWR 2.5 : 1
Output VSWR 2.3 : 1
Conversion gain 55 dB
Output P1dB 5 dBm
Power requirements +15 to +24 V supplied through center conductor of IF cable
Current drain 175 mA
Input Waveguide WR42

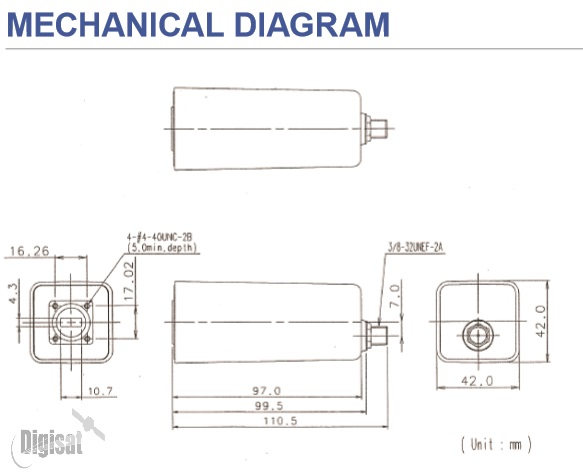

Dimensions 111 (L) x 42 (W) x 42 (H) mm
Weight 350 g / 12.5 oz
Temperature Range -40°C to + 60°C
Typical service 9000A
Input frequency (GHz) 20.2 - 21.2
L.O. frequency (GHz) 19.25
Output frequency (MHz) 950 to 1950
Noise figure 1.3 dB
L.O. stability ±1 MHz
(over temperature excl offset)
Phase noise -50 dBc/Hz at 1kHz
(SSB) -65 dBc/Hz at 10kHz
-90 dBc/Hz at 100kHz
Input VSWR 2.5 : 1
Output VSWR 2.3 : 1
Conversion gain 55 dB
Output P1dB 5 dBm
Power requirements +15 to +24 V supplied through center conductor of IF cable
Current drain 175 mA
Input Waveguide WR42
Dimensions 111 (L) x 42 (W) x 42 (H) mm
Weight 350 g / 12.5 oz
Temperature Range -40°C to + 60°C
Typical service 9000A
Input frequency (GHz) 20.2 - 21.2
L.O. frequency (GHz) 19.25
Output frequency (MHz) 950 to 1950
