Norsat 7040ST 4W Ka-Band Non-Inverted Block Upconverter
Tx Frequency: 29.5 - 31.0 GHz, Gain stability over temperature ±2.0 dB at any constant frequency, Type N input connector

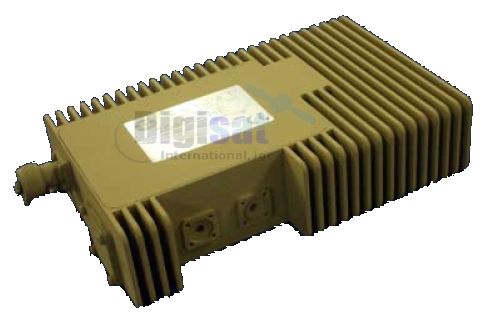

Norsat 7040ST 4W Ka-Band BUC
Norsat 7040ST Ka-Band 4W Block Upconverter (Non-Inverted), Output Freq: 29.5 to 31.0 GHz in selectable sub-bands
Input Freq:
E - IF: 1000 - 2000, RF: 30 - 31
H - IF: 950 - 1950, RF: 30 - 31
S - IF: 950 - 1450, RF: 29.5 - 30
L.O. Freq: 28.55 GHz, Gain: 55 dB, Output to P1dB: >36 dBm, Ext Ref: 10 MHz, Output Waveguide: WR28 Flange, Input Connector: Type N female

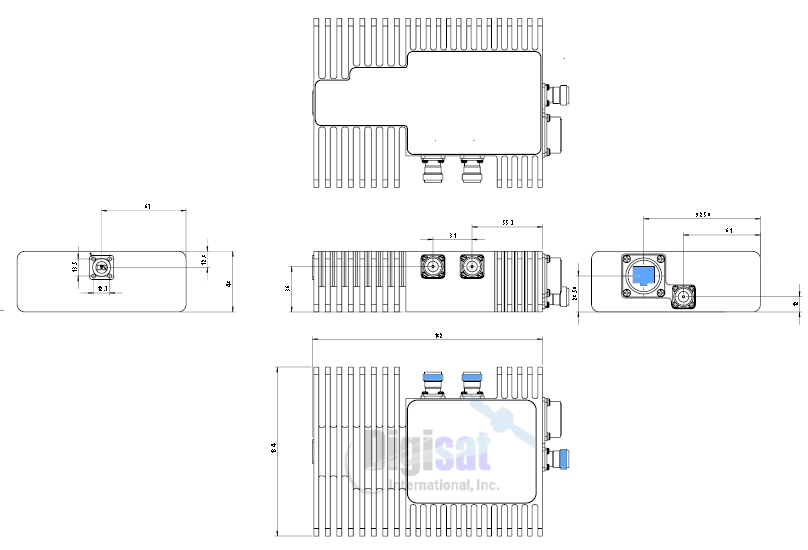

Outline Dimensions
RF Specifications
Output frequency 30.0 GHz to 31.0 GHz (29.5 GHz to 30.0 GHz)
Input frequency 950 to 1950 MHz 1000 to 2000 MHz (optional)
Output to P1dB 36 dBm
L.O. frequency options 28.55 GHz
Input VSWR 1.5 : 1
Output VSWR 2.0 : 1
Phase noise (SSB) -47 dBc/Hz at 100 Hz
- -72 dBc/Hz at 1 kHz
- -77 dBc/Hz at 10 kHz
- -92 dBc/Hz at 100 kHz
- -105 dBc/Hz at 1 MHz
External reference 10 MHz signal frequency
Power requirements +17 to +30 V supplied through center conductor of IF cable
Output Waveguide WR28
Dimensions 220 (L) x 130 (W) x 48 (H) mm (8.7″ x 5.1″ x 1.9″)
Weight 1.5 kg
External reference level -5 to +5 dBm
10 MHz external reference -140 dBc/Hz at 1 kHz phase noise
Gain 55 dB
Gain stability over temperature ±2.0 dB at any constant frequency
Gain stability over operating ±2.0 dB over full band temperature
Temperature Range -30°C to +60°C
OPTIONAL- Monitor & Control RS232, PLL Lock, Tx on/off

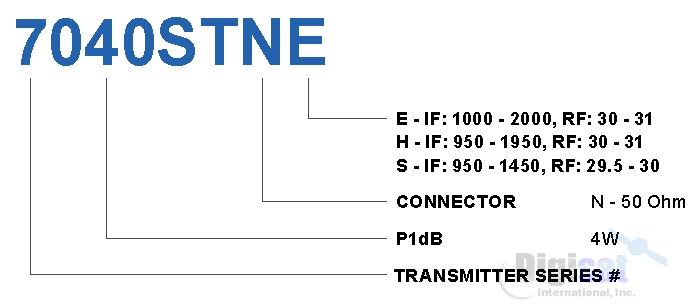

How to Order
Military VSAT systems such as flyaway, maritime and mobile where compact and highly portable equipment is required
