Norsat 7020ST 2W Ka-Band Non-Inverted Block Upconverter
Tx Frequency: 29.5 - 31.0 GHz, Gain stability over temperature ±2.0 dB at any constant frequency, Type N input connector

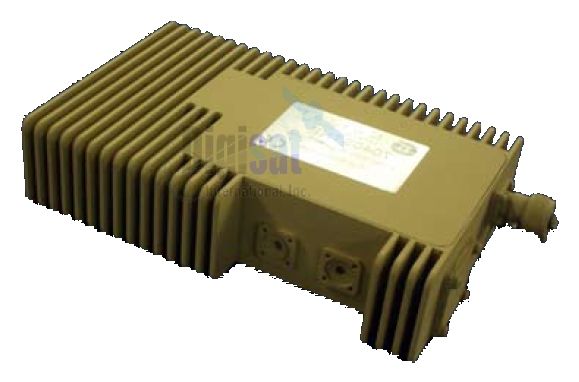

Norsat 7020ST 2W Ka-Band BUC
Norsat 7020ST Ka-Band 2W Block Upconverter (Non-Inverted), Output Freq: 29.5 to 31.0 GHz in selectable configuration, Input Freq: 950 to 2000 MHz, L.O. Freq: 28.55 GHz, Gain: 55 dB, Output to P1dB: >33 dBm, Ext Ref: 10 MHz, Output Waveguide: WR28 Flange, Input Connector: Type N female

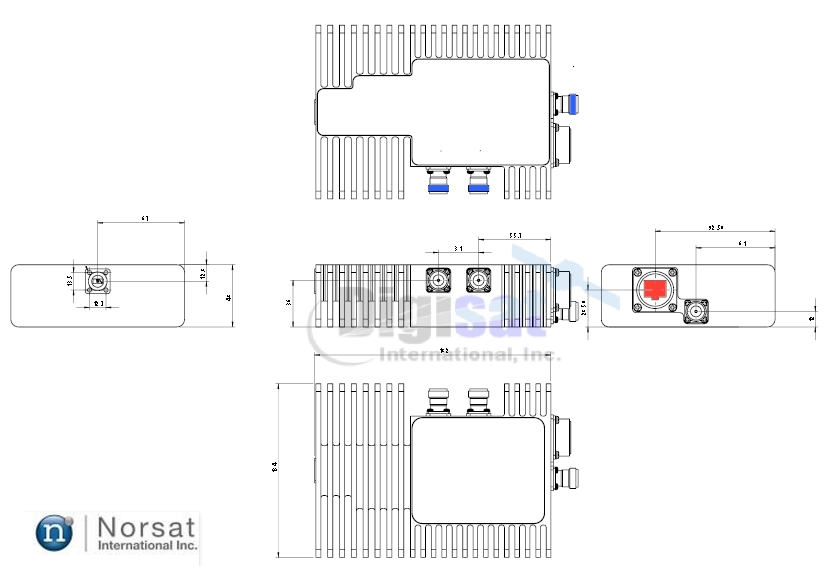

Outline Dimensions
RF Specifications
Output frequency 29.5 GHz to 30.0 GHz,
Input frequency 950 to 1450 MHz
- E - IF: 1000 - 2000, RF: 30 - 31
- H - IF: 950 - 1950, RF: 30 - 31
- S - IF: 950 - 1450, RF: 29.5 - 30
Output to P1dB 33 dBm
L.O. frequency options 29 GHz (29.05, 28.55 GHz)
Input VSWR 1.5 : 1
Output VSWR 2.0 : 1
Phase noise (SSB) -47 dBc/Hz at 100 Hz
- -72 dBc/Hz at 1 kHz
- -77 dBc/Hz at 10 kHz
- -92 dBc/Hz at 100 kHz
- -105 dBc/Hz at 1 MHz
External reference 10 MHz signal frequency
Power requirements +17 to +30 V supplied through center conductor of IF cable
Output Waveguide WR28
Dimensions 220 (L) x 130 (W) x 48 (H) mm (8.7″ x 5.1″ x 1.9″)
Weight 1.5 kg
External reference level -5 to +5 dBm
10 MHz external reference -140 dBc/Hz at 1 kHz phase noise
Gain 55 dB
Gain stability over temperature ±2.0 dB at any constant frequency
Gain stability over operating ±2.0 dB over full band temperature
Temperature Range -30°C to +60°C
OPTIONAL- Monitor & Control RS232, PLL Lock, Tx on/off

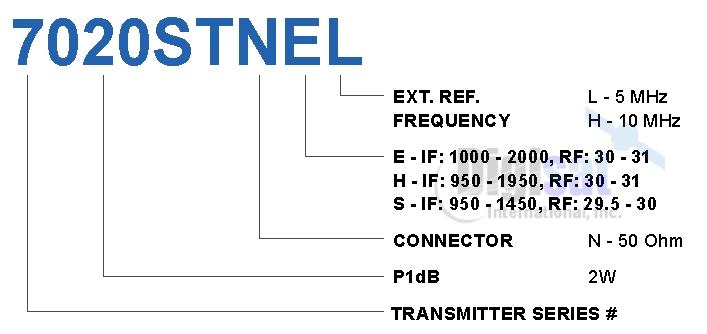

How to Order
Military VSAT systems such as flyaway, maritime and mobile where compact and highly portable equipment is required
