Norsat 5700RF C-Band PLL LNB (3.7 - 4.2 GHz) +/-75 kHz F-Type with Interference Rejection
NORSAT 5700RF C-BAND PLL LNB +/-75 KHZ
Norsat 5700RF C-Band PLL LNB with built-in interference rejection, +/-75 kHz F-Type, LO Frequency: 5.15 GHz, Conversion Gain: 62 dB, RF Input: CPR 229G waveguide grooved, Output Connector F-75 Ohm
- Input Frequency: 3.4 - 4.2 GHz
- L.O. Stability: +/-75 kHz
- Noise Figure: 15K typical
- Output Connector: F-Type Female
- L.O. Frequency: 5.15 GHz
- Conversion Gain: 62 dB typical
- Output frequency (MHz) 950 – 1450 MHz
TYPICAL SPECIFICATIONS
-
L.O. stability ±50 kHz – ±100 kHz depending on model number
-
Noise temperature 15 K typ., 30 K max.
-
Phase noise -65 dBc/Hz @ 1 kHz offset -80 dBc/Hz @ 10 kHz offset -95 dBc/Hz @ 100 kHz offset
-
Input VSWR & Output VSWR 2.3:1
-
Conversion gain 62 dB typical 55 dB min 70 dB max
-
Output P1dB 10 dBm
-
Power requirements 12 - 24V DC supplied through center conductor of IF cable
-
Current drain 250 mA
-
Input Waveguide CPR 229G
-

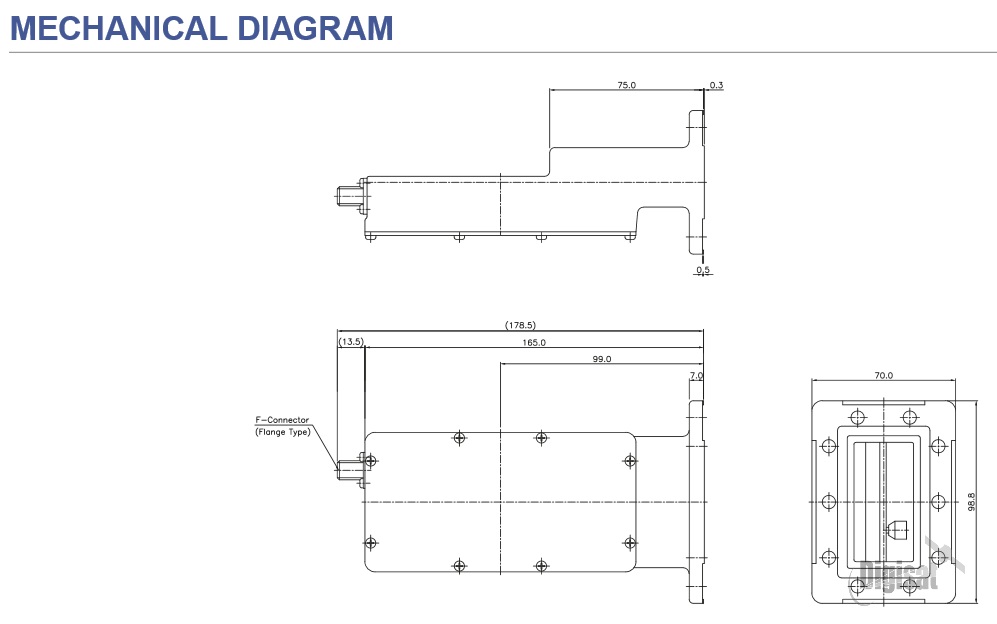

Dimensions 190 (L) x 115 (W) x 78 (H) mm (7.1 x 4.0 x 2.8 in)
-
Weight 580 g / 20.5 oz
-
Temperature Range -40°C to +60°C
Ideal for DBV (Digital Broadcast Video), VSAT Broadband, Military Satcom, Point-of-Sale, and Oil and Gas applications where interference rejection is required.
