Norsat 5500IF Insat C-Band PLL LNB +/- 50 kHz F-Type

Norsat 5200 Series C-Band PLL LNB (3.4 - 4.2 GHz)

Norsat 5700RF C-Band PLL LNB (3.7 - 4.2 GHz) +/-75 kHz F-Type with Interference Rejection

Be the first to review this product

$264.00

SKU

NST-5500IF

Norsat 5500IF Insat C-Band PLL LNB +/- 50 kHz F-Type is available to buy in increments of 1

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Details

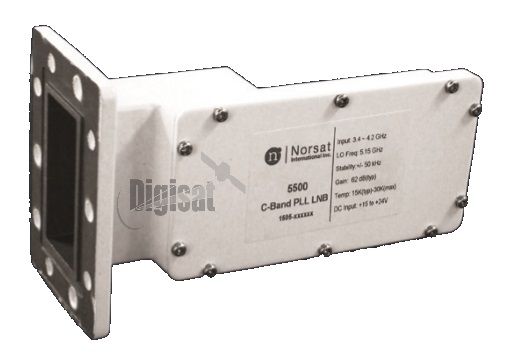

NORSAT 5500IF INSAT C-BAND PLL LNB +/- 50 kHz F-Type

Ideal for DVB (Digital Video Broadcast), VSAT Broadband, Military Satcom, Point-of-Sale, and Oil and Gas applications where built-in interference rejection is required

Input Frequency: 4.5 - 4.8 GHz
L.O. Stability: +/-50 kHz
Noise Figure: 15K typical
Output Connector: Type F-Female
L.O. Frequency: 5.95 GHz
Conversion Gain: 62 dB typical
Output frequency (MHz) 1150 – 1450 MHz

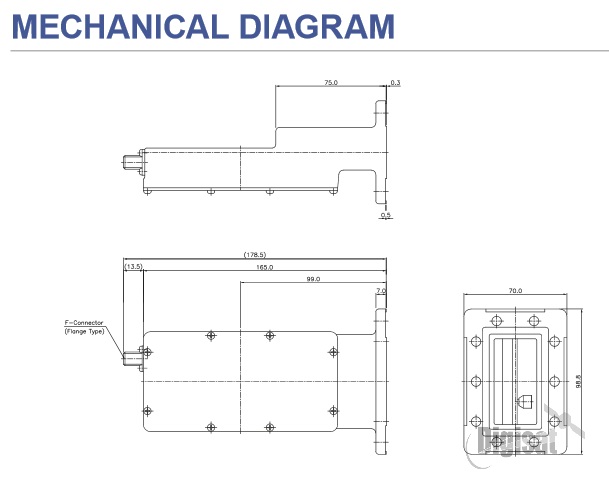

Norsat 5500IF Insat LNB Mechanical Dimensions

Technical Specifications

TYPICAL SPECIFICATIONS

L.O. stability ±50 kHz – ±100 kHz depending on model number
Noise temperature 15 K typ., 30 K max.
Phase noise -65 dBc/Hz @ 1 kHz offset -80 dBc/Hz @ 10 kHz offset -95 dBc/Hz @ 100 kHz offset
Input VSWR & Output VSWR 2.3:1
Conversion gain 62 dB typical 55 dB min 70 dB max
Output P1dB 10 dBm
Power requirements 12 - 24V DC supplied through center conductor of IF cable
Current drain 250 mA
Input Waveguide CPR 229G
Dimensions 190 (L) x 115 (W) x 78 (H) mm (7.1 x 4.0 x 2.8 in)
Weight 580 g / 20.5 oz
Temperature Range -40°C to +60°C

Applications

Ideal for DBV (Digital Broadcast Video), VSAT Broadband, Military Satcom, Point-of-Sale, and Oil and Gas applications where interference rejection is required.
