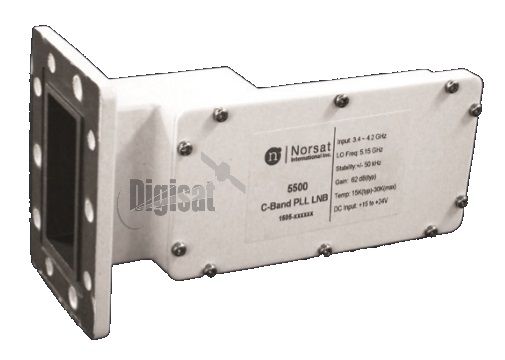

Norsat 5000 Series C-Band PLL LNB
Login To See Price
SKU
NST-5000
Norsat 5000 Series C-Band PLL LNB is available to buy in increments of 1
NORSAT 5000 C-BAND PLL LNB +/-50 KHZ
Ideal for DVB (Digital Video Broadcast), VSAT Broadband, Military Satcom, Point-of-Sale, and Oil and Gas applications
- Input Frequency: 3.4 - 4.2 GHz
- L.O. Stability: +/-50 kHz
- Noise Figure: 15K typical
- Output Connector: F-Type Female
- L.O. Frequency: 5.15 GHz
- Conversion Gain: 62 dB typical
- Output frequency (MHz) 950 – 1750 MHz
TYPICAL SPECIFICATIONS
- L.O. stability ±50 kHz – ±100 kHz depending on model number
- Noise temperature 15 K typ., 30 K max.
- Phase noise -65 dBc/Hz @ 1 kHz offset -80 dBc/Hz @ 10 kHz offset -95 dBc/Hz @ 100 kHz offset
- Input VSWR & Output VSWR 2.3:1
- Conversion gain 62 dB typical 55 dB min 70 dB max
- Output P1dB 10 dBm
- Power requirements 12 - 24V DC supplied through center conductor of IF cable Current drain 250 mA
- Input Waveguide CPR 229G
- Dimensions 190 (L) x 115 (W) x 78 (H) mm (7.1 x 4.0 x 2.8 in)
- Weight 580 g / 20.5 oz
- Temperature Range -40°C to +60°C
