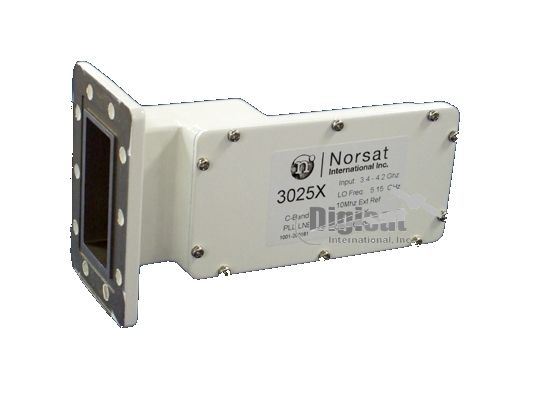

Norsat 3030XN C-Band (3.4 to 4.2 GHz) Ext Ref PLL LNB Type-N Connector
$561.00
SKU
NST-3030XN-PLL
Norsat 3030XN C-Band (3.4 to 4.2 GHz) Ext Ref PLL LNB Type-N Connector is available to buy in increments of 1
Noise temperature: 30 K, 3.40 to 4.20 GHz, 5.15 GHz L.O. Frequency, Output: 950 to 1750 MHz, L.O. stability: Phase Locked to External Reference
3030XN C-Band Ext Ref PLL LNB
The Norsat 3030XN Series C-Band PLL LNB is externally referenced, operates from 3.40 to 4.20 GHz, and delivers incredible 30 K noise temperature stability. This externally referenced C-Band Norsat LNB has a precision CPR229 waveguide input and offers phase noise of 1 kHz, 10 kHz, and 100 kHz±5 kHz.
Norsat 3030XN Ordering Information
Outline Diagram
| KEY SPECIFICATIONS | |
| Product Family | 3000 Series |
| Band | C-Band |
| LO Type | External |
| # of onboard LOs | Single-band |
| LO Stability | Phase Locked to External Reference at 10MHz |
| Noise Figure | 30 K |
| Input Frequency - Band 1 | C-Band: 3.40 - 4.20 GHz |
| Output Frequency 1 | L-Band: 950 - 1750 MHz |
| RF SPECIFICATIONS | |
| LO Frequency 1 | 5.15 GHz |
| Phase Noise @ 1KHz offset | Depends on External Reference |
| Phase Noise @ 10KHz offset | Depends on External Reference |
| Phase Noise @ 100KHz offset | Depends on External Reference |
| Conversion Gain | 65 dB |
| Gain Variation over operating band | ≤ 4 dB p-p |
| Input VSWR | 2.3 : 1 |
| Output VSWR | 2.3 : 1 |
| Output P1dB compression point | 3 dBm |
| ELECTRICAL SPECIFICATIONS | |
| Power Requirements | 12 - 24 V |
| Current Drain | 250 mA |
| INTERFACE SPECIFICATIONS | |
| RF Input Connector | CPR 229G waveguide grooved |
| RF Output Connector | N-50 Ohm |
| M & C SPECIFICATIONS | |
| LED Indicators | None |
| ENVIRONMENTAL SPECIFICATIONS | |
| Temperature - Operational | -40 to +60°C |
| PHYSICAL SPECIFICATIONS | |
| Dimensions (L x W x H) | 180 x 100 x 70 mm |
| Weight | 575g |
