Norsat 3020X-2N Series C-Band (3.4 to 4.2 GHz) Ext Ref PLL LNB (Type-N)

3020X-2 Externally Referenced C-Band LNB

Norsat 3020X-2 Series C-Band (3.4 to 4.2 GHz) Ext Ref PLL LNB

Norsat 3030XN C-Band (3.4 to 4.2 GHz) Ext Ref PLL LNB Type-N Connector

Be the first to review this product

$671.00

SKU

NST-3020X-2N

Norsat 3020X-2N Series C-Band (3.4 to 4.2 GHz) Ext Ref PLL LNB (Type-N) is available to buy in increments of 1

3.40-4.20 GHz, 5.15 GHz L.O. Frequency, Output: 950 to 1750 MHz

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Details

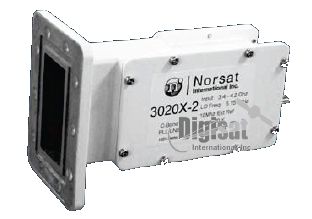

3020X-2N C-Band PLL LNB

The Norsat 3020X-2N Series C-Band LNB is externally referenced and operates from 3.40 to 4.20 GHz and features an ultra-low 20 K noise temperature configuration. This external refernced Norsat C-Band LNB has a CPR229 waveguide input and provides phase noise specification of 1 kHz, 10 kHz, and 100 kHz±5 kHz. Type-N 50 Ohm RF output

Ordering Information

norsat 3020X-2 ordering configuration

Outline Diagram

Technical Specifications

KEY SPECIFICATIONS
Product Family	3000 Series
Band	C-Band
LO Type	External
# of onboard LOs	Single-band
LO Stability	Phase Locked to External Reference at 10MHz
Noise Figure	20 K
Input Frequency - Band 1	C-Band: 3.40 - 4.20 GHz
Output Frequency 1	L-Band: 950 - 1750 MHz

RF SPECIFICATIONS
LO Frequency 1	5.15 GHz
Phase Noise @ 1KHz offset	Depends on External Reference
Phase Noise @ 10KHz offset	Depends on External Reference
Phase Noise @ 100KHz offset	Depends on External Reference
Conversion Gain	65 dB
Gain Variation over operating band	≤ 4 dB p-p
Input VSWR	2.3 : 1
Output VSWR	2.3 : 1
Output P1dB compression point	3 dBm

ELECTRICAL SPECIFICATIONS
Power Requirements	12 - 24 V
Current Drain	250 mA

INTERFACE SPECIFICATIONS
RF Input Connector	CPR 229G waveguide grooved
RF Output Connector	Type-N 50 Ohm

M & C SPECIFICATIONS
LED Indicators	None

ENVIRONMENTAL SPECIFICATIONS
Temperature - Operational	-40 to +60°C

PHYSICAL SPECIFICATIONS
Dimensions (L x W x H)	180 x 100 x 70 mm
Weight	575g
