Norsat 3000C Series PLL High Stability C-Band LNB
C-Band- 3.625 to 4.2 GHz, 5.15 GHz L.O. Frequency
3000C LNB
The Norsat 3000C Series C-Band PLL LNB operates from 3.625 to 4.2 GHz and is available in 20 and 25 degree Kelvin noise temperature configurations.This High Stability Norsat C-Band LNB has a CPR229 waveguide input and offers ±5 kHz, ±10 kHz, and ±25 kHz local oscillator stability specifications.

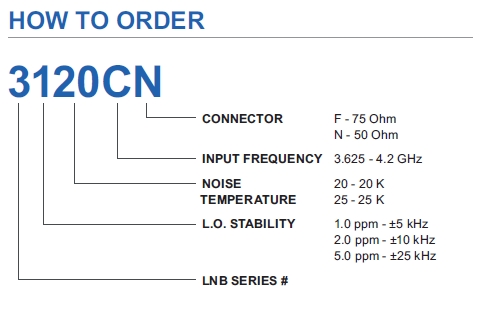

Norsat 3000C Ordering Information

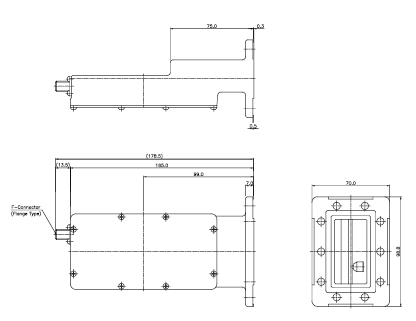

Outline Diagram
TYPICAL SPECIFICATIONS
Noise temperature 20 K, 25 K
L.O. stability ±5 kHz, ±10 kHz, ±25 kHz
(over temperature excl offset) depending on model number
Phase noise -73 dBc/Hz at 1 kHz
(SSB) -83 dBc/Hz at 10 kHz
-93 dBc/Hz at 100 kHz
Input VSWR 2.2 : 1
Output VSWR 2.2 : 1
FREQUENCY BANDS AVAILABLE
Input frequency (GHz) 3.625 to 4.20
L.O. frequency (GHz) 5.15
Output frequency (MHz) 950 to 1525
VSAT, Tx/Rx, TVRO
