Norsat 3000 Series High Stability C-Band (3.4 to 4.2 GHz) LNB
C-Band- 3.40 to 4.20 GHz, 5.15 GHz L.O. Frequency, Output: 950 to 1450 MHz
The Norsat 3000 Series High Stability C-Band LNB has a local oscillator frequency of 5.15 GHz and operates from 3.40 to 4.20 GHz. The 3000 LNB is available with noise temperature configurations from 20 to 30K. This super high stability Norsat C-Band LNB has a CPR229 waveguide input and offers Local Oscillator stability ranges of ±2 kHz to ±25 kHz. Type-F or Type-N connector output.

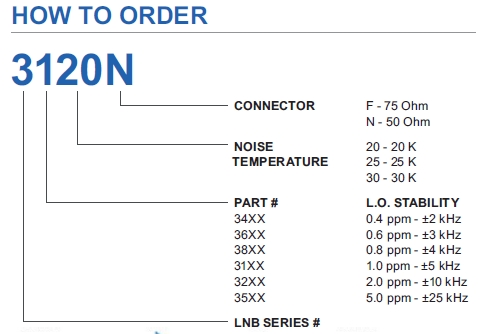

Norsat 3000 Series Ordering Information

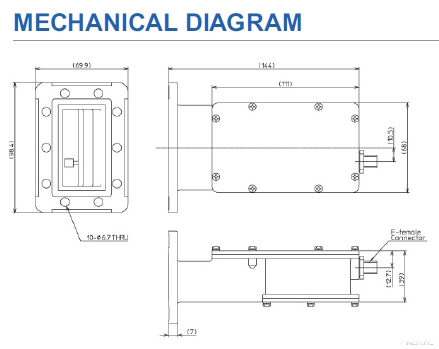

Outline Diagram
TYPICAL SPECIFICATIONS
Noise temperature 20K to 30K
depending on model number
L.O. stability ±2 kHz to ±25 kHz
(over temperature excl offset) depending on model number
Phase noise -80 dBc/Hz at 1kHz
(SSB) -85 dBc/Hz at 10kHz
-95 dBc/Hz at 100kHz
Input VSWR 2.2 : 1
Output VSWR 2.2 : 1
FREQUENCY BANDS AVAILABLE
Input frequency (GHz) 3.40 to 4.20
L.O. frequency (GHz) 5.15
Output frequency (MHz) 950 to 1750
VSAT, Tx/Rx, TVRO, Maritime
