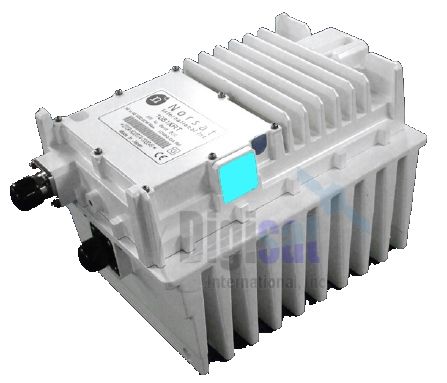

Norsat 1081XRTS 8W Selectable Ku-Band Block Upconverter
Tx Frequency: Ext. 13.75-14.5 GHz & Std. 14.0-14.5 GHz, External reference 10 MHz, Type-N or "F" input connector
1081XRTS 8W Selectable Ku-Band Block Upconverter
The Norsat 1081XRTS Selectable Ku-Band BUC is fully switchable between Standard (14.0 to 14.50 GHz) and Extended (13.75 to 14.50 GHz) Ku frequencies while transmitting at a maximum output at P1dB of 39 dBm. Extremely high efficiency reduces power consumption significantly, delivering considerable operational cost savings over the lifetime of the device.
Key Features
Small size, ideal for feed mounting
18 frequency options available
RoHS Compliant
RF Configurations
|
Model |
1081XRTSF |
1081XRTSN |
|
|
Typ-F input connector |
Type-N input |
|
l.O. frequency (GHz) |
12.8 GHz (13.05 GHz) |
12.8 GHz (13.05 GHz) |
|
input frequency (GHz) |
950 – 1700 MHz |
950 – 1700 MHz |
Highly Versatile
Element BUCs are ideal for applications such as:
Fixed VSAT Antennas
Comms on the Move
Mobile Terminals
Maritime Vessels
Unmanned ISR (intelligence, surveillance and reconnaissance)

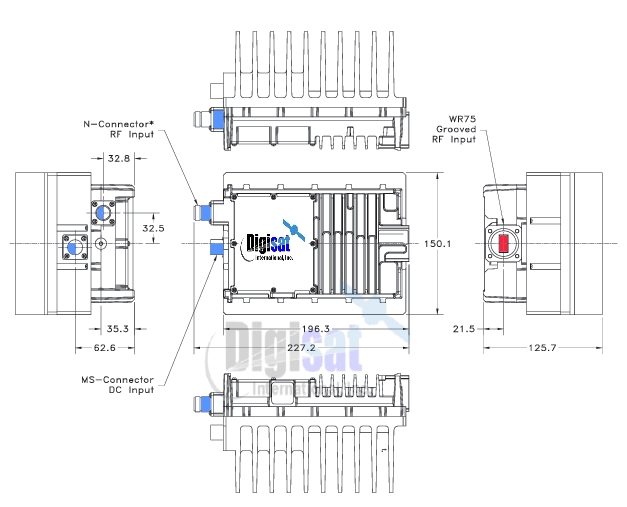

Outline Dimensions
RF Specifications
Output frequency 13.75 to 14.50 GHz, (14.00 to 14.50 GHz)
Input frequency 950 to 1700 MHz, (950 to 1450 MHz)
Output to P1dB 39 dBm
L.O. frequency 12.8 GHz (13.05 GHz)
Input VSWR 2.0 : 1
Output VSWR 2.1 : 1
Phase noise (SSB) -70 dBc/Hz at 1 kHz
-80 dBc/Hz at 10 kHz
-90 dBc/Hz at 100 kHz
External reference 10 MHz signal frequency
Power requirements BUC: 48V
BUC & AC PS: 100V
BUC & AC PS: 240V
Power consumption BUC: 80W
BUC & AC PS: 94W
BUC & AC PS: 91W
Output Waveguide WR75 - grooved
Dimensions BUC: 230 (L) x 130 (W) x 130 (H) mm, (9.1 x 5.1 x 5.1 in), PS: 258 (L) x 149 (W) x 73 (H) mm, (10.2 x 5.9 x 2.9 in)
Weight BUC: 4.0 kg / 8.8 lb, PS: 2.0 kg / 4.4 lb
Interfaces
input VsWr 2.0 : 1
Output VsWr 2.0 : 1
Input connector N: 50 Ω, F: 75 Ω
Output connector WR-75
Power
Power requirements +48 VDC over IFL
Power consumption 80W max

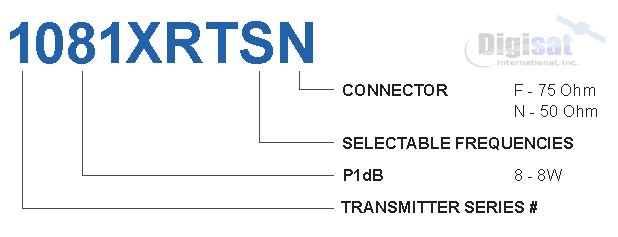

How to Order
For use on all VSAT terminals. Easily mounts directly on all VSAT antenna feed booms
