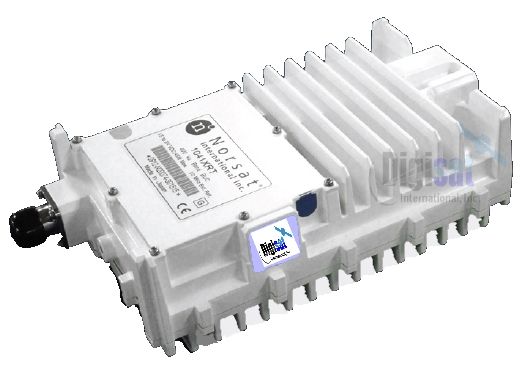

Norsat 1041XRTS 4W Selectable Ku-Band Block Upconverter
Tx Frequency: 13.75-14.5 GHz & 14.0-14.5 GHz, Noise Figure: 15 dB, Type-N or F-connector input
Norsat 1041XRTS 4W Selectable Ku-Band Block Upconverter
** This product has reached end of life and has been replaced by the Atom series BUC **
The Norsat 1041XRT Series 4W BUC now offers easy selectability between Standard (14.0 - 14.50 GHz) and Extended Ku-Band (13.75 - 14.50 GHz). LO Frequency 12.80 or 13.05 GHz, input frequency 950 to 1450 MHz
The Element series block upconverters (BUCs) are among the smallest, lightest, and most energy efficient transmitters available. Their high efficiency reduces power consumption significantly, delivering considerable operational cost savings over the lifetime of the device.
Key Features
Small size, ideal for feed mounting
18 frequency options available
RoHS Compliant
Configurations
|
Model |
1041XRTSF F-Connector |
1041XRTSN Type-N Connector |
|
Output frequency (mHz) |
13.75 – 14.5 GHz |
13.75 – 14.5 GHz |
|
l.O. frequency (GHz) |
12.80 GHz & 13.05 GHz |
12.80 GHz & 13.05 GHz |
|
input frequency (GHz) |
950 – 1700 MHz |
950 – 1700 MHz |
Highly Versatile
Element BUCs are ideal for applications such as:
Fixed VSAT Antennas
Comms on the Move
Mobile Terminals
Maritime Vessels
Unmanned ISR (intelligence, surveillance and reconnaissance)

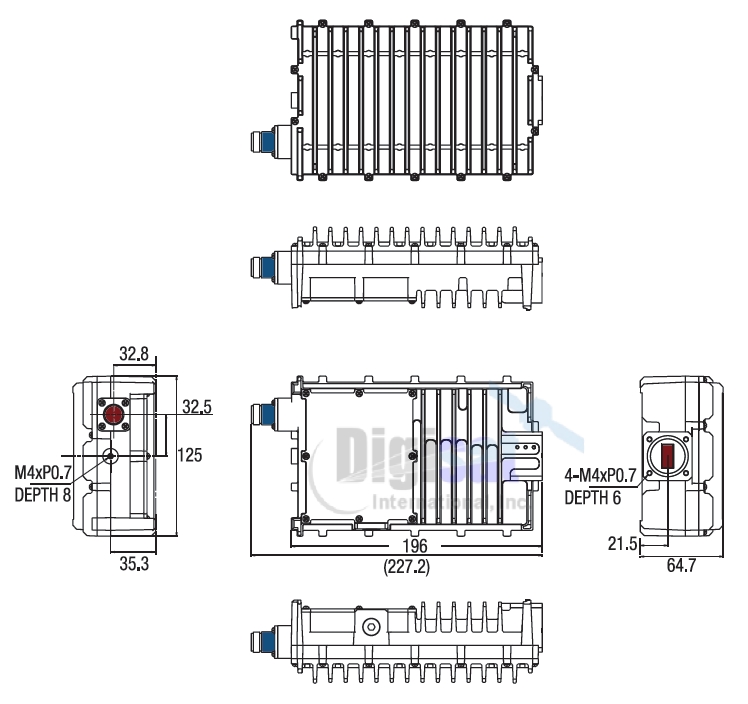

Outline Dimensions
RF Specifications
Output frequency 13.75 to 14.50 GHz (14.0 to 14.50 GHz)
Input frequency 950 to 1700 MHz (950 to 1450 MHz)
Output to P1dB 36 dBm
L.O. frequency 12.80 GHz (13.05 GHz)
Input VSWR 2.0 : 1
Output VSWR 2.1 : 1
Phase noise (SSB)
- -70 dBc/Hz at 1kHz
- -80 dBc/Hz at 10kHz
- -90 dBc/Hz at 100kHz
External reference 10 MHz signal frequency
Output Waveguide WR75 - grooved
Dimensions 228 (L) x 125 (W) x 65 (H) mm (9.0 x 4.9 x 2.6 in), weight 1.9 kg / 4.2 lb
Interfaces
input VsWr 2.0 : 1
Output VsWr 2.0 : 1
Input connector N: 50 Ω, F: 75 Ω
Output connector WR-75
Power
Power requirements +15 to +24 VDC over IFL
Power consumption 45W max

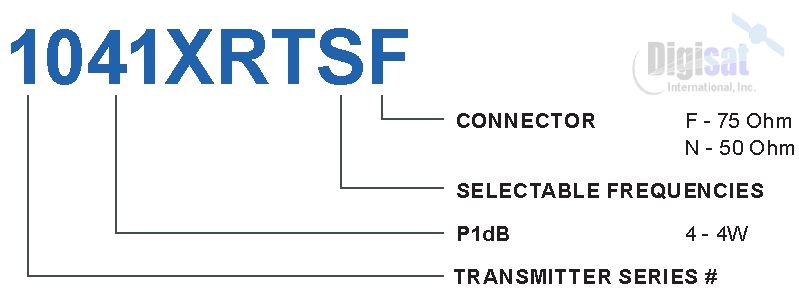

How to Order
For use on all VSAT terminals. Easily mounts directly on all VSAT antenna feed booms
