Norsat 1008DXF-1 PLL Simultaneous Ku-Band External Reference VSAT LNB
Simultaneous Ku-Band- 11.7 - 12.75 GHz, 10.7 - 11.7 GHz, 9.75 & 10.75 GHz L.O. Frequency, Output: 950 - 1950 MHz & 950 - 2000 MHz, Output: Dual F Connectors
The Norsat 1008DXF-1 LNB provides simultaneous reception of two Ku-Bands, High Band 11.7 - 12.75, Low Band 10.7 - 11.7 GHz. The 1008DXF-1 series LNB utilizes (2) 75 Ohm F-Type connectors for dual RF outputs and offers two local oscillator frequencies- 9.75 GHz and 10.75 GHz. This LNB includes a standard noise figure rating of .8 dBm and a WR75 waveguide input.

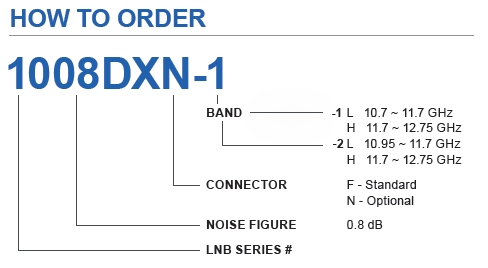

Norsat 1008DXF-1 Series Ordering Information

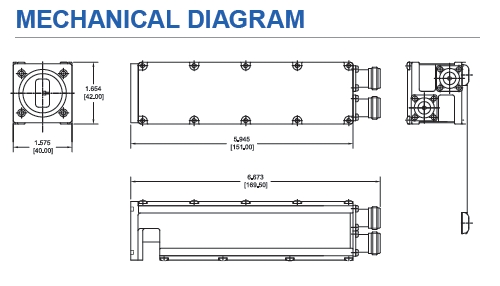

Outline Diagram

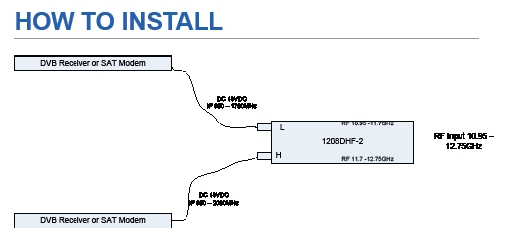

Installation Configuration
TYPICAL SPECIFICATIONS
Noise fgure 0.8 dB
LO stability Phase locked to External Reference
LO Phase noise -75 dBc at 1 kHz
-85 dBc at 10 kHz
-95 dBc at 100 kHz
Gain 55 dB
P1dB +6 dBm
DC Power 18 V
Current 300 mA
Input Waveguide WR-75
Output F-connector (75 ohm)
N (Optional) (50 ohm)
Dimensions 150 x 40 x 40 (L x W x H)
Weight 300 g
Operating Temperature -40 - +60'C
External Ref Freq 10 MHz (sine-wave)
-10 to 0 dBm
-1 -2
Frequency Band L 10.7 ~ 11.7 GHz 10.95 ~ 11.7 GHz
(RF Input) H 11.7 ~ 12.75 GHz 11.7 ~ 12.75 GHz
LO Frequency L 9.75 GHz 10.00 GHz
H 10.75 GHz 10.75 GHz
IF Frequency L 950 ~ 1950 MHz 950 ~ 1700 MHz
H 950 ~ 2000 MHz 950 ~ 2000 MHz
Externally Referenced, Simultaneous Ku-Band Satellite Reception
