Japan Radio NJZ1286N 150W BUC Power Supply System
Block Upconverter (BUC) power supply for 8 watt Ku-Band NJRC BUCs and 10W C-Band NJRC BUCs
NJZ1286N 150W BUC Power Supply System
The New Japan Radio NJZ1286 series power supply provides 150 watts of DC output power for powering NJRC 8 Watt BUC and 10 Watt BUCs. The 1286 series BUC Power supply integrates directly to the IFL coaxial cable and includes a fully integrated BIAS-T for DC blocking.
Features
Compliance with UL Certification
Indoor AC/DC Power Supply Unit for Ku-8W & C-10W BUCs
Maximum Output Power: 150 W
Output Voltage: +48 VDC
Bias-tee Equipped
Regardless of Any Types of Modem
Directly Connect the Coaxial Cable including IF, Reference and DC
One Coaxial Cable Solution
Compatible with 1U Rack-mount
LED Indicator Equipped
RoHS Compliance

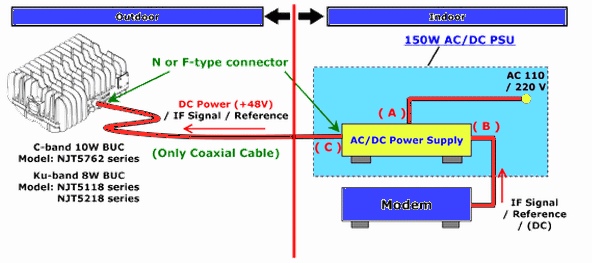

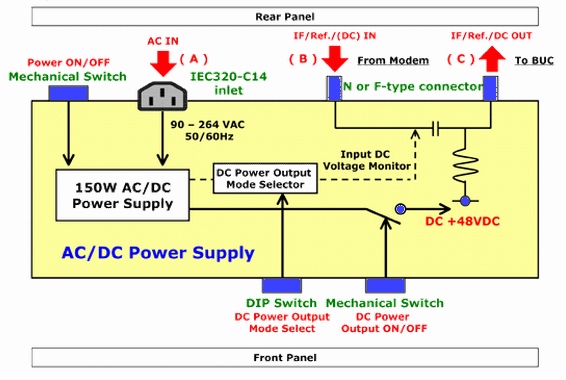

NJZ1286 System Overview
|
Interface |
AC Input: IEC320-C14 inlet |
|
IF/Ref./(DC) Input:N-type, female (50 ohm) or F-type, female (75 ohm) |
|
|
IF/Ref./DC Output:N-type, female (50 ohm) or F-type, female (75 ohm) |
|
|
Input AC Voltage |
Rated Range: 100 to 240 VACAbsolute Maximam Rating: 90 to 264 VAC |
|
Input AC Frequency |
50 / 60 Hz |
|
Output Voltage |
+48 VDC +/- 10 % |
|
Maximum Output Power |
150 W |
|
IF Frequency |
950 to 1,700 MHz |
|
Standard |
EN55022EN55024EN61000-3-2/3EN60950-1 / UL60950-1EN62311 |
|
Regulations |
* EU Directive (CE Marking)EMC (2004/108/EC)LOW VOLTAGE (2006/95/EC)* UL Certification |
|
Size |
290 (W) x 200 (D) x 44 (H) mm[11.42" (W) x 7.87" (D) x 1.73" (H)]Compatible with 1U Rack-mount |
|
Weight |
1.6 kg [3.5lbs] |
|
Accessories |
AC power cable of 2 mCoaxial cable of 1 m1U rack mount kit (Option) |
150 Watt BUC Power supply, Integrated BIAS-Tee
