Avcom RF SNG-2500C L-Band Satellite Spectrum Analyzer
Excellent for portable and fixed signal analyzing applications where carrier monitoring is required

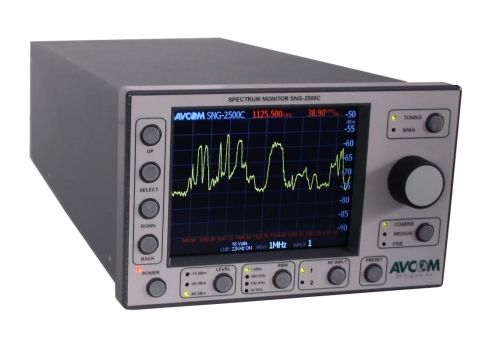

SNG-2500C Compact Spectrum Analyzer
The new Avcom SNG-2500C spectrum analyzer was designed with excellent frequency and amplitude accuracy as well as a wide variety of resolution bandwidth selections ranging from 10kHz to 1MHz. This is required to allow for viewing and monitoring of small TT&C and data carriers found in many satellite communications markets today. The front panel has independent control of Frequency & Span with settings for Fine, Medium and Coarse to allow the operator to dial into the carrier and control the display as needed.
Technical Specifications
MIL-STD 810F Approved
Frequency Coverage: 5MHz – 2,500 MHz
Span Width: 0 - 1300 MHz
Resolution Bandwidth: 10KHz, 100KHz, 300KHz, 1MHz
RF Sensitivity: Greater than - 85 dBm Typical
Reference Levels: Selectable - 10 dBm, - 30 dBm & -50 dBm
Scale: 5 dB/Div & 2dB/Div
Dynamic Range: 40 dB on Application Window
Amplitude Accuracy: +/- 1 dB typical
Frequency Accuracy: +/- 1KHz typical
Input Connector: “BNC” Type others available
Size: 8.5” x 4.75” x 16.5”
Weight 5 Lbs.
Power Requirements: +15 VDC
Display: Full VGA Color LCD
News Uplink Trucks, Direct replacement for Tektronix 1705A
