Newtec MDM2200 Sat3Play IP Satellite Modem

MDM2200 Sat3Play Satellite Modem

This product has reached end of life and has been replaced by the MDM2210 series.

The Newtec MDM2200 IP Satellite Modem is a 2-way, high throughput modem. It is combined with a range of different antenna sizes and interactive LNB’s forming a cost-effective satellite terminal on the Sat3Play Platform.

IP Service

The modem supports various IP services like internet/intranet access, VoIP and multi-casting. Its ease of installation and high
performance modulation techniques enable network operators to offer IP broadband services in a cost effective way over Ku and Kaband networks. It is perfectly fitted to service home-users, Small Office and Home Office (SOHO), Small and Medium Enterprises (SME) as well as supporting applications like telemetry networks, Point Of Sale (POS) or banking.

Simple and Cost Effective Deployment

Thanks to a unique design of both the compact modem and the interactive LNB (iLNB), the cost of the terminal is kept minimal.
The IP Satellite Modem is available with unique Point & Play easy-installation technology, supporting the installation of the
complete terminal without any specific qualification or expensive tooling. Point & Play® provides correct satellite identification and
facilitates pointing with an audio feedback. After mounting and positioning, the integrated certification assures correct installation by giving instant link quality approval. It guarantees that each terminal works at maximum efficiency without any interference risk.

Broadband Efficiency

For a true broadband experience, the IP Satellite Modem incorporates the most efficient technologies available, such as DVB-S2 Adaptive Coding Modulation (ACM) in the forward link, an Adaptive Return Link with advanced 4CPM modulation and IP traffic enhancement software for TCP acceleration, pre-fetching, compression and encryption.

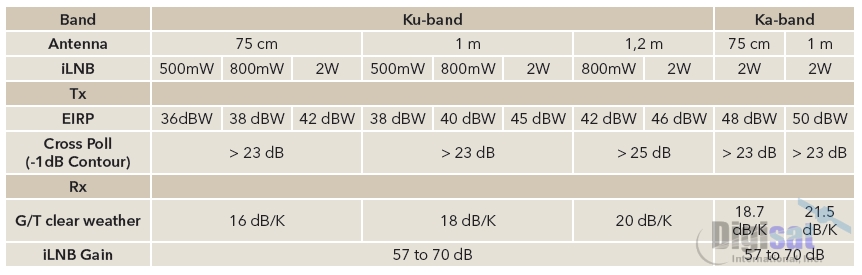

ODU and Antenna Specifications

Key Features

 Low initial investment per user, thanks to a very low terminal cost and unique Point & Play® easy - installation capability
 Easy to use web GUI for installation, diagnostics and troubleshooting
 Adaptive Return Link based on different 4CPM modulations/coding and multiple channel bandwidths.
 High service satisfaction ensured through true broadband experience
 Optimal availability and efficiency of DVB-S2 transmission thanks to Newtec’s technologies FlexACM ® and ThiMM
 Efficiency improvement of 10 to 15% with Newtec’s Clean Channel Technology

Satellite Terminals

The Newtec MDM2200 IP Satellite modem is packaged with an easy to install and high performance Outdoor Unit (ODU). This terminal package is highly optimized for cost, efficiency and ease of use. The ODU consist of a high quality, easy to install antenna and an integrated transmitter and low noise block down converter (iLNB).

Simple Field Deployment

The MDM2200 terminal can be delivered fully packed, country and distribution customized. The 75cm antenna is offered in a
single box including modem, full ODU and additional options: RF cable, Ethernet cable, documentation and Point&Play
device. All antennas can also be shipped in bulk for e.g. cost optimized sea freight. With this offer, local logistics become
straightforward by removing the need for local packaging.

RF Efficiency

The MDM2200 return technology is compatible with fully saturated transmitters. So, on top of the power efficient technology, the
saturated output power gives even higher power efficiency.

Easy Installation

The antenna mast-head for 75cm and 1m antennas is completely pre-mounted, and does not require additional assembly work.
The complete ODU Portfolio is compatible with Point & Play easy-installation technology, supporting the installation of the
complete terminal by installers without any specific qualification or expensive tooling.

Extensive Flexibility

The antenna portfolio covers both Ku and Ka-band for different sizes. For 75cm and 1m the antennas can be used both in Ku and
Ka band. This allows starting a network in Ku-band and move to Kaband at the appropriate time with limited extra investment.
