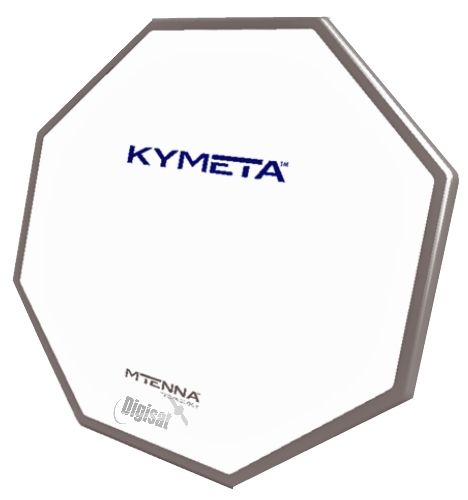

Kymeta KyWay u7H (11.8-12.7 GHz) 8W with iDirect X7 Modem

KyWay u7H Terminal with 8W BUC and iDirect X7 Modem

The Kymeta KyWay u7H operates in Ku-Band frequencies from 11.8 to 12.7 GHz and includes an 8W BUC and iDirect X7 Velocity modem.  These low-profile high-throughput SOTM communication systems out perform any mechanical fixed antenna and on-the-move dishes making connecting any vehicle, vessel or or fixed platform easier and more reliable than ever before.

KĀLO satellite services from Digisat can also be bundled with this system and purchased in flexible, variable usage packages that utilize familiar and easy-to-understand data plans.

These light-weight and compact SOTM antennas deliver an end-to-end, broadband, mobile communications solution.

• Easy Operation and Installation, Satellite technician not required for installation, setup, commissioning and provisioning
• Highly reliable, solid state electronically-steered antenna, no gimbals, no motors required
• Extremely agile, fast tracking, on-the-move connectivity supports mobile broadband

Key Features

• Flat-panel for low-profile installation options
• Electronic steering for low maintenance and reliable connectivity
• Simple power-on startup and auto-acquisition for easy operation
• Lower power consumption than competitive flat panel terminals
• Broad applicability – for all maritime vessels, vehicles and fixed applications
• Reliable communications even at high speeds and on rough seas or terrain
• Part Number 800-00024-001
• Fully integrated with 8 watt BUC and X7 iDirect modem
• Completely compatible with KALO Global Satellite Internet Service

Digisat provides turnkey installation for all U7H antenna systems anywhere in the world, anytime, for any application. Internet service provisioning is also performed by our highly skilled technicians and can be accomplished within hours after purchase. Please contact us today for a total turnkey solution.

All KALO Internet plans and prices for fixed, mobile and maritime can be found here

System Configuration

Cable Kits

• 100-00007 RX-TX, LMR-240, 3.66M LENGTH
• 100-00008 RX-TX, LMR-240, 7.62M LENGTH
• 100-00009 RX-TX, LMR-240, 15.24M LENGTH
• 100-00016 INTERFACE, 3.66M LENGTH
• 100-00017 INTERFACE, 7.62M LENGTH
• 100-00018 INTERFACE, 15.24M LENGTH

Plus/Select

• 800-00013 U7H 8 WATT FOR PLUS/SELECT W/O MODEM
• 800-00014 U7H 16 WATT FOR PLUS/SELECT W/O MODEM
• 400-00001 MTENNA PLUS
• 400-00002 MTENNA SELECT
• 400-00003 MODEM, IDIRECT X7, EVOLUTION
• 400-00010 LNB UPGRADE FOR PLUS/SELECT

Services

• 500-00001 SOFTWARE FEATURE LICENSE, MANUAL POSITION MODE
• 500-00002 SOFTWARE FEATURE LICENSE, FULL PRIVACY MODE
• 900-00021 EXTENDED 3RD YEAR WARRANTY PACKAGE
• 900-00023 TRAINING, KYWAY TERMINAL, LEVEL I
