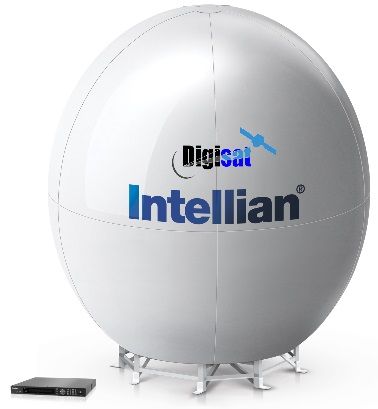

Intellian Technologies v240M 2.4M C & Ku-Band Maritime Antenna
2.4M, Global broadband system, C-Band and Ku-Band in a single terminal, perfect for military and government applications
V240M C-Band & Ku-Band Maritime Transmit & Receive System
The Intellian v240M Ku and C-band system is the largest antenna and the flagship of the Intellian Marine TX/RX product line. It also represents the newest addition to Intellian's line of VSAT Satellite Antennas and features patented automatic switching between both frequency bands, as well as circular and linear polarization. The V240M's high-gain parabolic ring focus components, and an ultra-wide elevation angle enables superb connectivity virtually anywhere you go, even in extremely low and high latitude regions.
Easy Operation
The v240M requires minimal involvement to commission, is easy to operate, and is simple to upgrade and manage. Each unit comes preloaded with a ready-to-use, client-customized library that can be conveniently tailored further via PC software (also included with the unit), and firmware updates can be done entirely through the Wi-Fi ACU.
Highlighted Features
2.4m (94”) C-band 3-axis VSAT antenna system
1 piece, high gain parabola ring focus antenna
New patent pending technology, allowing auto-switching between circular and linear polarization
Lighter than the competitor’s system without sacrificing strength and rigidity using a carbon fiber composite reflector
Built-in brakes on the elevation and cross-level motors
Supports extremely high and low elevation angles (-15° to +120°)
Simply configured with various BUC options (25W - 200W)
Exceeds military grade vibration and shock standards
Supports ACU operation via Wi-Fi with built-in web-based remote control management
Supports various modem interface formats (Ethernet, Console, RS232)
Dual built-in GPS to prevent loss of position due to antenna blockage
Optional internal air conditioner if required
Dimensions
Product Model Specifications
Intellian v240M 3-axis Marine Stabilized C-band Communication Antenna System
Radome & Antenna
Radome (D x H) 3.3m x 3.52m / 130” x 139”
Dish Diameter 2.4m / 94.5”
Weight 670kg / 1477 lbs (Radome + Antenna + Base frame)
Stabilized Pedestal Assembly
Pedestal Type 3-Axis: Azimuth, Elevation, Cross level
Azimuth Range Unlimited
Elevation Range -15º to +120º
Cross-level Range ± 30°
Brake System Elevation , Cross level
Pointing Accuracy 0.2° peak mis-pointing @ max ship motion condition
Reflector & Feed Assembly
TX Frequency 5.85GHz ~ 6.425GHz
TX Gain 41.7dBi @ 6.14GHz (with Radome)
RX Frequency 3.625 GHz ~ 4.2 GHz
RX Gain 37.7 dBi @ 3.91GHz (with Radome)
Cross-pol isolation Minimum 35dB
G/T 20 dB/K (Clear Sky, 20° Elevation)
Polarization Circular Polarization & Linear Polarization, Auto Switching
Max Ship’s Motion
Roll / Pitch / Yaw ±25° roll, ±15° pitch, ±15° yaw
Rack Mount Antenna Control Unit
Size 431mm x 381mm x 44mm / 16.9”x15”x 1.7”
Weight 3kg / 6.6 lbs
Display 2 Line 40 character graphic VFD module
Serial Interface 57,600bps 8, N, 1, RS-232C
Modem Interface Ethernet / RS-232C / Console
Gyrocompass Interface NMEA 2000 / 0183
Remote Access TCP/IP / Wi-Fi
Input Power 90 ~ 260V AC, 47~63Hz
Built specifically for the largest vessels on the water such as Cruise Ships, Freighters, Tankers and Military Fleets the V240M provides operation in both C-band and Ku-Band frequencies.
