Intellian Technologies T110W 1.05M Global Vessel HD Television System
1.05 meter antenna, Worldwide Marine Satellite TV reception without changing any hardware

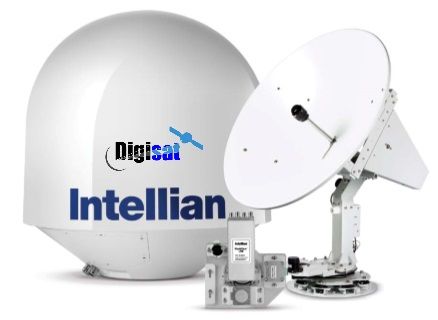

T110W Dual Axis Marine Satellite Antenna

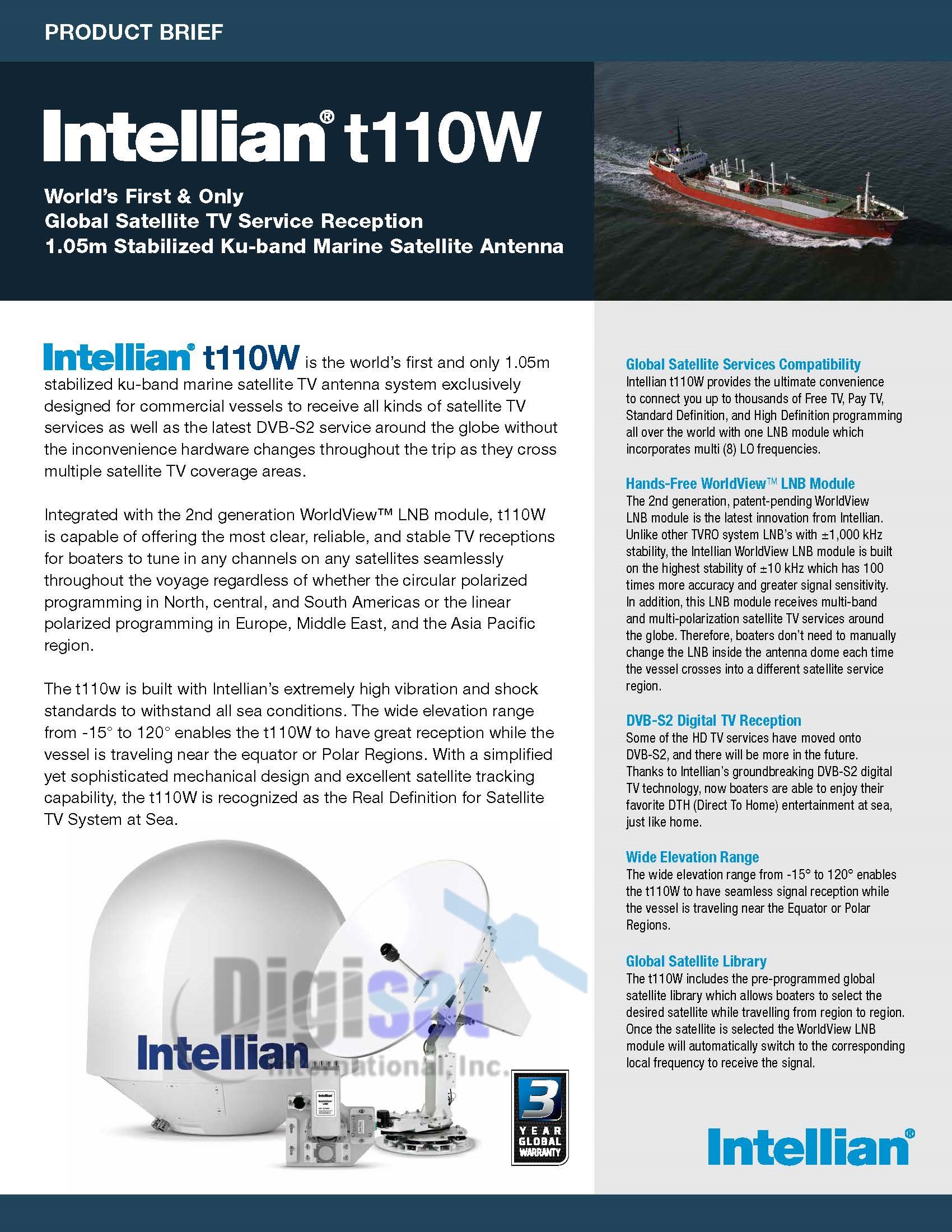

The Intellian T110W is the world’s first and only 1.05m stabilized ku-band marine satellite TV antenna system exclusively designed for commercial vessels to receive all kinds of satellite TV services as well as the latest DVB-S2 service around the globe without the inconvenience hardware changes throughout the trip as they cross multiple satellite TV coverage areas.
Complete Integration
Integrated with the 2nd generation WorldView LNB module, Intellian T110W is capable of offering the most clear, reliable, and stable TV receptions for boaters to tune in any channels on any satellites seamlessly throughout the voyage regardless of whether the circular polarized programming in North, central, and South Americas or the linear polarized programming in Europe, Middle East, and the Asia Pacific region.
Reliable & Rugged
The T110w is built with Intellian’s extremely high vibration and shock standards to withstand all sea conditions. The wide elevation range from -15° to 120° enables the T110W to have great reception while the vessel is traveling near the equator or Polar Regions. With a simplified yet sophisticated mechanical design and excellent satellite tracking capability, the T110W is recognized as the Real Definition for Satellite TV System at Sea.
Full Global Operation

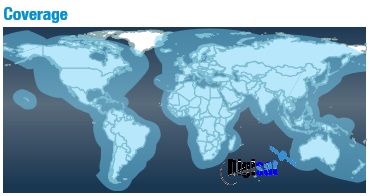

Global Satellite Services Compatibility Intellian t110W provides the ultimate convenience to connect you up to thousands of Free TV, Pay TV, Standard Definition, and High Definition programming all over the world with one LNB module which incorporates multi (8) LO frequencies.
Cutting Edge Block Downconverter
Hands-Free WorldView LNB Module The 2nd generation, patent-pending WorldView LNB module is the latest innovation from Intellian. Unlike other TVRO system LNB’s with ±1,000 kHz stability, the Intellian WorldView LNB module is built on the highest stability of ±10 kHz which has 100 times more accuracy and greater signal sensitivity. In addition, this LNB module receives multi-band and multi-polarization satellite TV services around the globe. Therefore, boaters don’t need to manually change the LNB inside the antenna dome each time the vessel crosses into a different satellite service region.
** The Global Intellian T110W replaces the standard T110 **

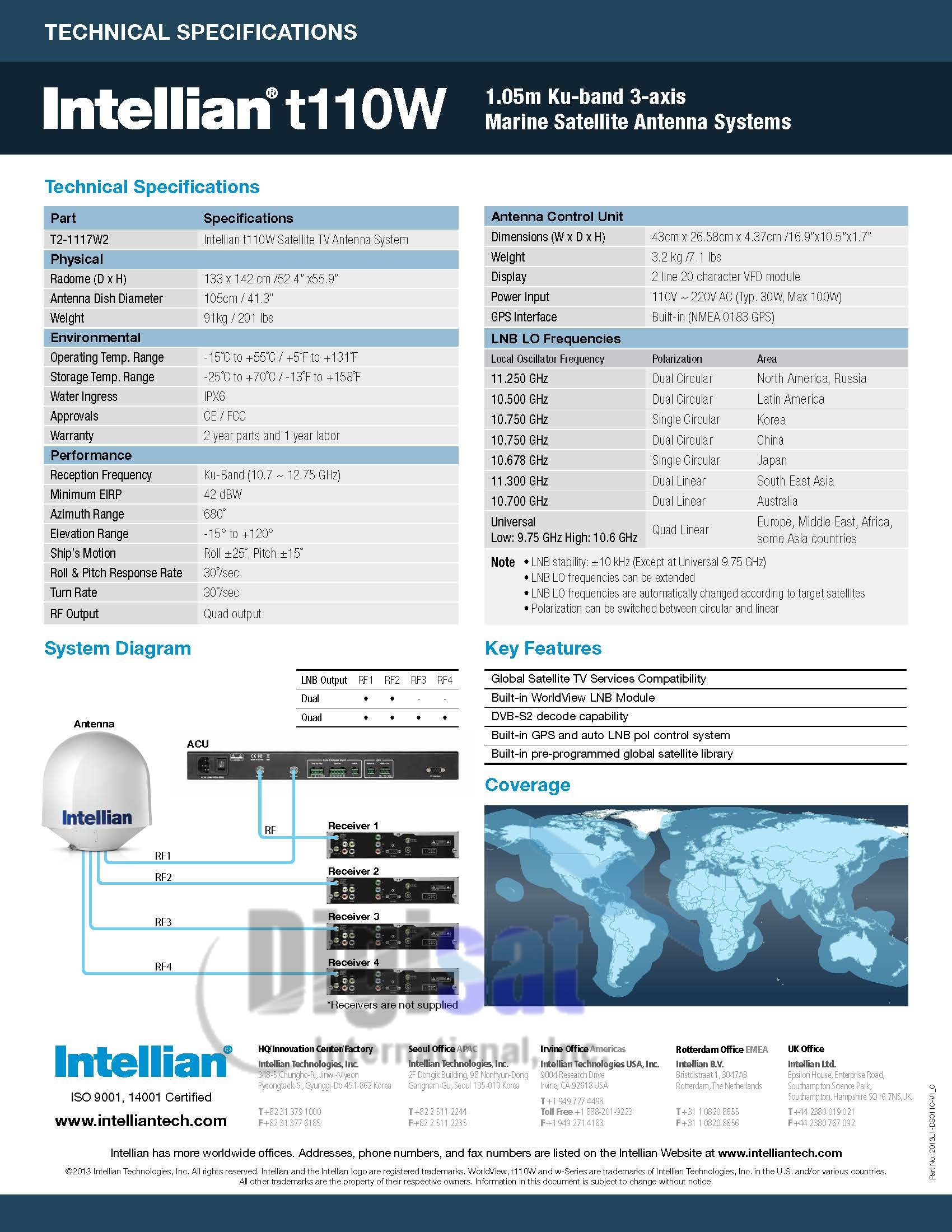

Part Specifications
T2-1117W2 Intellian t110W Satellite TV Antenna System
Physical
Radome (D x H) 133 x 142 cm /52.4” x55.9”
Antenna Dish Diameter 105cm / 41.3”
Weight 91kg / 201 lbs
Environmental
Operating Temp. Range -15˚C to +55˚C / +5˚F to +131˚F
Storage Temp. Range -25˚C to +70˚C / -13˚F to +158˚F
Water Ingress IPX6
Approvals CE / FCC
Warranty
2 year parts and 1 year labor
Performance
Reception Frequency Ku-Band (10.7 ~ 12.75 GHz)
Minimum EIRP 42 dBW
Azimuth Range 680˚
Elevation Range -15° to +120°
Ship’s Motion Roll ±25˚, Pitch ±15˚
Roll & Pitch Response Rate 30˚/sec
Turn Rate 30˚/sec

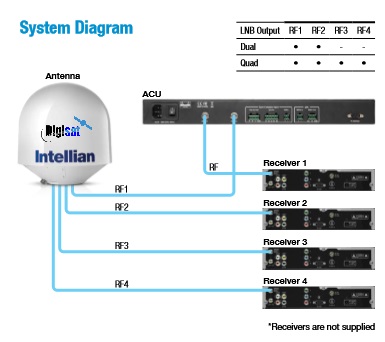

RF Output Quad output
Antenna Control Unit
Dimensions (W x D x H) 43cm x 26.58cm x 4.37cm /16.9”x10.5”x1.7”
Weight 3.2 kg /7.1 lbs
Display 2 line 20 character VFD module
Power Input 110V ~ 220V AC (Typ. 30W, Max 100W)
GPS Interface Built-in (NMEA 0183 GPS)
Key Features
Global Satellite TV Services Compatibility
Built-in WorldView LNB Module
DVB-S2 decode capability
Built-in GPS and auto LNB pol control system
Built-in pre-programmed global satellite library
LNB LO Frequencies
Local Oscillator Frequency Polarization Area
11.250 GHz Dual Circular North America, Russia
10.500 GHz Dual Circular Latin America
10.750 GHz Single Circular Korea
10.750 GHz Dual Circular China
10.678 GHz Single Circular Japan
11.300 GHz Dual Linear South East Asia
10.700 GHz Dual Linear Australia
Universal
Low: 9.75 GHz High: 10.6 GHz Quad Linear Europe, Middle East, Africa, some Asia countries
Note
• LNB stability: ±10 kHz (Except at Universal 9.75 GHz)
• LNB LO frequencies can be extended
• LNB LO frequencies are automatically changed according to target satellites
• Polarization can be switched between circular and linear
Vessels larger than 60 feet in length, Super Tankers, Barges, Tug Boats, Cruise Ships and more
